MIC2590B

Features: • Supports two independent PCI 2.2 slots• SMBus interface for slot power control and status• +5V, +3.3V, +12V, 12V, +3.3VAUX supplies supportedper PCI specification 2.2• Programmable inrush current-limiting• Active current regulation controls inrush current&...

product image

MIC2590B Picture
See larger image
SeekIC No. : 004420821 Detail

MIC2590B: Features: • Supports two independent PCI 2.2 slots• SMBus interface for slot power control and status• +5V, +3.3V, +12V, 12V, +3.3VAUX supplies supportedper PCI specification 2.2&#...

MIC2590B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MIC2590B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports two independent PCI 2.2 slots
• SMBus interface for slot power control and status
• +5V, +3.3V, +12V, 12V, +3.3VAUX supplies supported
per PCI specification 2.2
• Programmable inrush current-limiting
• Active current regulation controls inrush current
• Electronic circuit breaker
• Dual level fault detection for quick fault response without
nuisance tripping
• Thermal isolation between circuitry for slot A and slot B




Application

• PCI hot-plug power distribution




Pinout

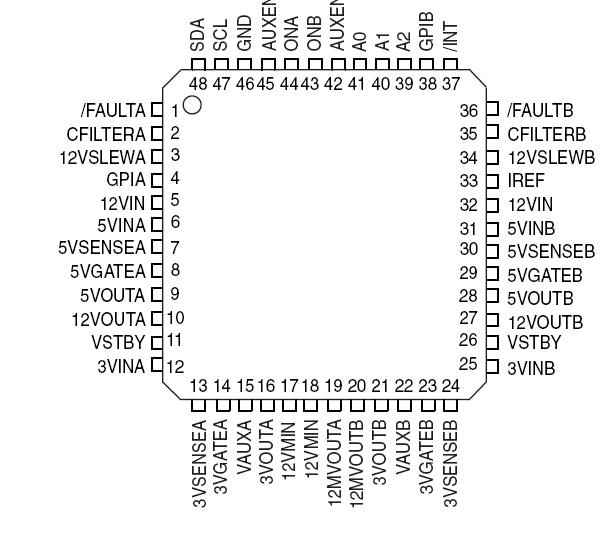

Connection Diagram




Specifications

Supply Voltage
(12VIN) .....................................................................+14V
(12MVIN) ..................................................................14V
(5VIN) .........................................................................+7V
(3VIN), (VSTBY) ...........................................................+7V
Any Logic Output Voltage ..........0.5 (min.)/+5.5V (max.)
Any Logic Input Voltage ........... 0.5 (min.)/+5.5V (max.)
Output Current (FAULT[A/B]#, /INT, SDA)............ ...10mA
Lead Temperature
IR Reflow, Peak Temperature ..................... 235 +5/0°C
Storage Temperature (TS) ................... 65°C to +150°C
ESD Rating, Note 3 ....................................................2kV




Description

The MIC2590B is a power controller supporting power distribution requirements for Peripheral Component Interconnect (PCI) hot plug compliant systems incorporating the Intelligent Platform Management Interface (IPMI). The MIC2590B provides complete power control support for two PCI slots including the 3.3VAUX defined by the PCI 2.2 specification. Support for +5V, +3.3V, +12V and 12V supplies is provided including programmable constant-current inrush limiting, voltage supervision, programmable current limit, fault reporting and circuit breaker functions which provide fault isolation. The MIC2590B also incorporates a SMBus interface in which complete status and control of power within each slot is provided. Data such as voltage and current from each supply of each slot can be obtained for IPMI sensor records in addition to power status of each slot.
