Application• Dual Slot PC Card Power Supply Pin Voltage Switch
• CardBus Slot Power Supply Control
• Data Collection Systems
• Machine Control Data Input Systems
• Wireless Communications
• Bar Code Data Collection Systems
• Instrumentation Configuration/Datalogging
• Docking Stations (portable and desktop)
• Power Supply Management

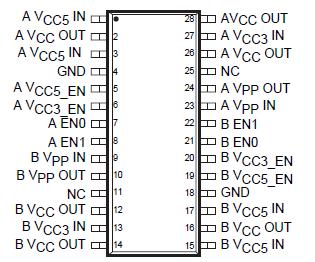

• Power Analog SwitchingPinout
SpecificationsPower Dissipation, TAMBIENT 25°C ...... Internally Limited
SSOP.............................................................. 800 mW
Derating Factors (To Ambient)
SSOP............................................................. 4 mW/°C
Storage Temperature .............................. 65°C to +150°C
Operating Temperature (Die) ................................... 125°C
Lead Temperature (5 sec)........................................ 260°C
Supply Voltage, VPP IN ...................................................15V
VCC3 IN ................................................................ 7.5V
VCC5 IN ................................................................ 7.5V
Logic Input Voltages..................................... 0.3V to +10V
Output Current (each Output)
VPP OUT ...............................>200mA, Internally Limited
VCC OUT .....................................>1A, Internally Limited
DescriptionThe MIC2563A dual-slot PCMCIA (Personal Computer Memory Card International Association) and CardBus power controller handles all PC Card slot power supply pins, both VCC and VPP. The MIC2563A switches between the three VCC voltages (0V, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V or 12.0V) required by PC Cards. The MIC2563A switches voltages from the system power supply to VCC and VPP. Output voltage is selected by two digital inputs each and output current ranges up to 1A for VCC and 250mA for VPP.
The MIC2563A provides power management capability controlled by the PC Card logic controller. Voltage rise and fall times are well controlled. Medium current VPP and high current VCC output switches are self-biasing: no +12V supply is required for 3.3V or 5V output.
The MIC2563A is designed for efficient operation. In standby (sleep) mode, the device draws very little quiescent current, typically 0.3µA. The device and PCMCIA port is protected by current limiting and overtemperature shutdown. Full cross-conduction lockout protects the system power supplies during switching operations.
The MIC2563A is an improved version of the MIC2563, offering lower on-resistances and a VCC pull-down clamp in the OFF mode. It is available in a standard 28-pin SSOP, as well as an environmentally friendly (lead-free) 28-pin SSOP.
All support documentation can be found on Micrel's web site at www.micrel.com.
