Features:
• Complete PCMCIA VCC and VPP switch matrix in a single IC
• No external components required
• Logic compatible with industry standard PCMCIA controllers
• No voltage overshoot or switching transients
• Break-before-make switching
• Output current limit and overtemperature shutdown
• Digital flag for error condition indication
• Ultralow power consumption
• Digital selection of VCC and VPP voltages
• Over 1A VCC output current
• 200mA VPP (12V) output current
• Options for direct compatibility with industry standard PCMCIA controllers
• 16-Pin SO packageApplication• PCMCIA power supply pin voltage switch
• Font cards for printers and scanners
• Data-collection systems
• Machine control data input systems
• Wireless communications
• Bar code data collection systems
• Instrumentation configuration/datalogging
• Docking stations (portable and desktop)
• Power supply sanagement

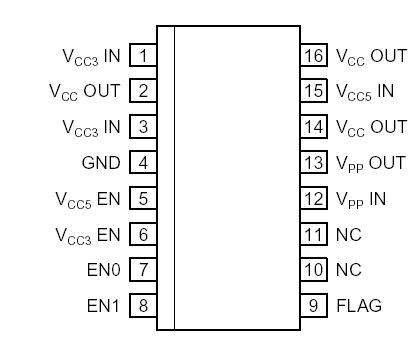

• Power analog switchingPinout
SpecificationsPower Dissipation, TAMBIENT 25°C ............... Internally Limited
SOP .................................................................................. 800 mW
Derating Factors (To Ambient)
SOP ................................................................................ 4 mW/°C
Storage Temperature ..................................... 65°C to +150°C
Maximum Operating Temperature (Die) .............................. 125°C
Operating Temperature (Ambient) .................... 40°C to +70°C
Lead Temperature (5 sec)................................................... 260°C
Supply Voltage, VPP IN ............................................................ 15V
VCC3 IN ............................................................................ VCC5 IN
VCC5 IN .................................................................................. 7.5V
Logic Input Voltages............................................... 0.3V to +15V
Output Current (each Output)
VPP OUT .............................................. >200mA, Internally Limited
VCC OUT .................................................... >1A, Internally Limited
VCC OUT, Suspend Mode ................................................... 600mADescriptionThe MIC2560 VCC and VPP Matrix controls PCMCIA (Personal Computer Memory Card International Association) memory card power supply pins, both VCC and VPP. The MIC2560 switches voltages from the system power supply to VCC and VPP. The MIC2560 switches between the three VCCvoltages (OFF, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V, or 12.0V) required by PCMCIA cards. Output voltage is selected by two digital inputs for each output and output current ranges up to 1A for VCC and 200mA for VPP.
The MIC2560 provides power management capability under the control of the PC Card controller and features overcurrent and thermal protection of the power outputs, zero current "sleep"mode, suspend mode, low power dynamic mode, and on-off control of the PCMCIA socket power.
The MIC2560 is designed for efficient operation. In standby (sleep) mode the device draws very little quiescent current, typically 0.01. The MIC2560 and PCMCIA ports are protected
by current limiting and overtemperature shutdown. Full cross-conduction lockout protects the system power supply
MIC2560 Data Sheet
