Product Details

Description



Features:

• Compliant to USB Specification Revision 2.0 for full speed (12Mbs) and low speed (1.5Mbps) operation
• Compliant to IEC-61000-4.2 (Level 3)
• Separate I/O supply with operation down to 1.6V
• Integrated speed select termination supply
• Very-low power consumption to meet USB suspendcurrent requirements
• Small TSSOP and MLF™ packages
• No power supply sequencing requirements
• Software controlled re-enumeration


Application

• PDAs
• Palmtops
• Cell phones

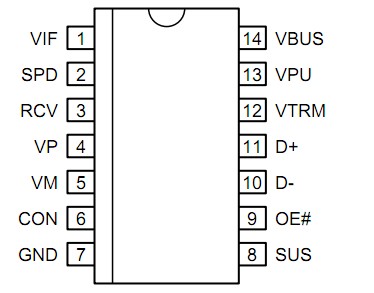

Pinout

Connection Diagram


Specifications

Supply Voltage (VBUS) ................................................ 6.5V
All Other Inputs ............................................ 0.5V to 5.5V
Ambient Storage Temperature ............... 65°C to +150°C
Output Current (D+, D) .......................................± 50mA
Output Current (all others) .....................................±15mA
Input Current ..........................................................±50mA
ESD, Note 3
    VBUS, D+, D........................................................ ±11KV
    All other pins ......................................................... ±2KV
Supply Voltage (VBUS) ................................. 4.0V  to 5.25V
Ambient Operating Temperature............... 40°C to +85°C
Package Thermal Resistance
    TSSOP (JA) .................................................. 100(°C/W)
    MLF (JA) ........................................................ 59(°C/W)


Description

The MIC2551A is a single chip transceiver that complies with the physical layer specifications of the Universal Serial Bus (USB) 2.0. MIC2551A supports both full speed (12Mbps) and low speed (1.5Mbps) operation and introduces superior edge rate control, producing crisper eye diagrams, which ease the task of passing USB compliance testing.

A unique, patented, dual supply voltage operation allows the MIC2551A to reference the system I/F I/O signals to a supply voltage down to 1.6V while independently powered by the USB VBUS. MIC2551A allows the system interface to operate at its core voltage without addition of buffering logic and also reduce system operating current.
