MIC2547

Supply Voltage (VIN) ..................................................+6.0V
Output Voltage (VOUT) ...............................................+6.0V
Output Current (IOUT) ............................... Internally Limited
Enable Input (VEN) ................................ 0.3V to VIN +0.3V
Fault Flag Voltage (VFLG) ...........................................+6.0V
Fault Flag Current (IFLG) ............................................50mA
Storage Temperature (TS) ....................... 65°C to +150°C
Junction Temperature (TJ) ....................... Internally Limited
Lead Temperature (soldering 5 sec.) ........................ 260°C
ESD Rating, Note 3 ...................................................... 2kV
Supply Voltage (VIN) ................................... +2.7V to +5.5V
Current Limit Set Range..................................... 0.1 to 1.5A
Ambient Temperature Range (TA) ............. 40°C to +85°C
Package Thermal Resistance
SOP (JA) ..........................................................120°C/W
TSSOP (JA) .....................................................100°C/W


Description

The MIC2546 and MIC2547 are integrated high-side dual power switches optimized for low loss dc power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2546/47 is a cost-effective, highly integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision resistor- programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device. The MIC2546/47's open-drain flag outputs are used to indicate current-limiting or thermal shutdown to a local controller.

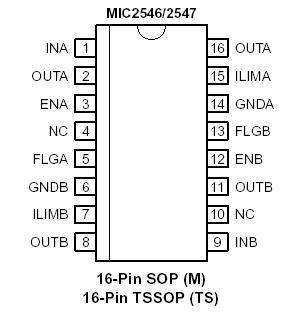

The MIC2547 has an additional internal latch which turns the output off upon thermal shutdown providing robust fault control. The enable signal is compatible with both 3V and 5V logic, and is also used as the thermal shutdown latch reset for it. The MIC2546 and MIC2547 are available in active-high and active-low enable versions in 16-pin TSSOP and SOP packages.
