MIC2529

The MIC2529 is a high-side power switch optimized for selfpowered (individual port switching) and bus-powered (ganged port switching) Universal Serial Bus (USB) hub applications.An on-board voltage regulator provides the 3.3V supply voltage needed for many USB microcontrollers reducing board component count.

The MIC2529 satisfies the following USB requirements: it supplies up to 500mA as required by USB downstream devices; the switch's low on-resistance meets USB voltage drop requirements; fault current is limited to typically 750mA,well below the UL 25VA safety requirement; and a flag output is available to indicate fault conditions to the local USB controller. Soft start eliminates the momentary voltage drop on the upstream port that may occur when the switch is enabled in bus-powered applications.

A low-dropout (LDO) regulator provides 3.3V at loads up to 100mA and MIC2529 includes an enable pin for low current shutdown.Both enable inputs are compatible with 3.3V and 5V logic.Thermal shutdown prevents catastrophic failure from highcurrent loads.

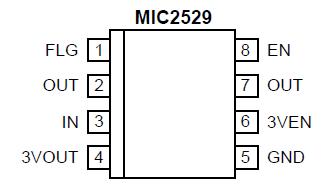

The MIC2529 is available in an 8-pin SOIC package with active-high or active-low enable circuitry on switch.
