Features: • Low MOSFET on resistance to 2.7V
30mW typical at 5V (MIC2505-series)
35mW typical at 3.3V (MIC2505-series)
75mW typical at 5V (each MIC2506 output)
80mW typical at 3.3V (each MIC2506 output)
• 2.7V to 7.5V input
• 110mA typical on-state supply current
• 1mA typical off-state supply current
• Output can be forced higher than input (off-state)
• Current limit
• Thermal shutdown
• 2.5V undervoltage lockout (UVLO)
• Open-load detection (MIC2505BN/M and MIC2506BN/M only)
• Open-drain fault flag
• 5ms (slow) turn-on and fast turnoff
• Logic-level control/enable inputApplication• USB Power Distribution
• 3.3V and 5V power management
• PC Card card inrush limiting switch
• Hot plug-in power supplies

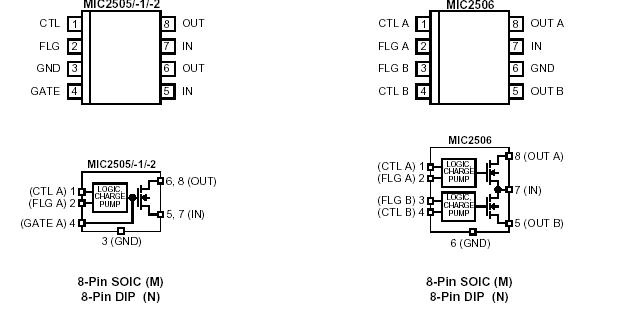

• Battery-charger circuitsPinout
SpecificationsSupply Voltage (VIN) ..................................................... 8.0V
Fault Flag Voltage (VFLG) ............................................... 7.5V
Fault Flag Current (IFLG) ...............................................50mA
Output Voltage (VOUT) .................................................. 7.5V
Output Current (IOUT) ................................ Internally Limited
Gate Voltage (VGATE) ............................................ VIN + 15V
Control Input (VCTL) ......................................... 0.3V to 15V
Storage Temperature (TA) .................... 65°C to +150°C
Lead Temperature (Soldering 5 sec.) ........................ 260°C
Supply Voltage (VIN) ................................... +2.7V to +7.5V
Ambient Operating Temperature (TA) ....... 40°C to +85°C
Thermal Resistance
SOIC (qJA) ............................................................. 160°C/W
DIP (qJA) ................................................................105°C/W
Description
The MIC2505, MIC2505-1, MIC2505-2, and MIC2506 are single and dual integrated high-side power switches that consist of TTL compatible control/enable inputs, a charge pump, and protected N-channel MOSFETs. The MIC2505/6 family can be used instead of separate high-side drivers and MOSFETs in many low-voltage applications. The MIC2505/6 family controls voltages ranging from 2.7V to 7.5V. The MIC2505-series can deliver at least 2A continuous current while the MIC2506 can deliver at least 1A continuous current from each output.
A slow turn-on MIC2505, MIC2505-1, MIC2505-2, and MIC2506 feature prevents high inrush current when switching capacitive loads. The internal control circuitry is powered from the same 2.7V to 7.5V. Within the device's input range, outputs can be forced higher than the input voltage when disabled. Multipurpose open-drain fault flag outputs indicate overcurrent limiting, open-load detection (except MIC2505-1 and -2 versions), thermal shutdown, or undervoltage lockout for each channel.
Overcurrent limiting of MIC2505, MIC2505-1, MIC2505-2, and MIC2506 is internally fixed and requires no external components. Open-load detection is active when the switch is off. When off, a normal load pulls the output pin low. If the load is open, an optional, external, high-value resistor pulls the output pin high, triggering the fault flag. MIC2505-1 and -2 versions are tailored to Universal Serial Bus (USB) applications and do not include open-load detection. Thermal shutdown turns off the output if the die temperature exceeds approximately 135°C.
If MIC2505, MIC2505-1, MIC2505-2, and MIC2506 are enabled, the switch automatically restarts when the temperature falls 10°C. Undervoltage lockout (UVLO) shuts off the output if the supply drops below 2.3V typical and reenables the output when the supply exceeds 2.5V typical.
MIC2506 Data Sheet
