MIC2215

Features: Input voltage range:+2.25V to +5.5V70dB PSRRStable with ceramic output capacitorHigh output accuracy:±1.0% initial accuracy±2.0% over temperatureLow dropout voltage of 100mV@150mALow quiescent current:110A per regulatorFast turn-on time:30sZero off-mode currentThermal shutdown protection...

product image

MIC2215 Picture
See larger image
SeekIC No. : 004420730 Detail

MIC2215: Features: Input voltage range:+2.25V to +5.5V70dB PSRRStable with ceramic output capacitorHigh output accuracy:±1.0% initial accuracy±2.0% over temperatureLow dropout voltage of 100mV@150mALow quies...

MIC2215 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MIC2215
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Input voltage range:+2.25V to +5.5V
70dB PSRR
Stable with ceramic output capacitor
High output accuracy:
 ±1.0% initial accuracy
 ±2.0% over temperature
Low dropout voltage of 100mV@150mA
Low quiescent current:110A per regulator
Fast turn-on time:30s
Zero off-mode current
Thermal shutdown protection
Current-limit protection
Tiny 16-pin (4mm? 4mm) MLF™package


Application

Cellular phones
PCs and peripherals
Wireless LAN cards
PDAs
GPS


Pinout

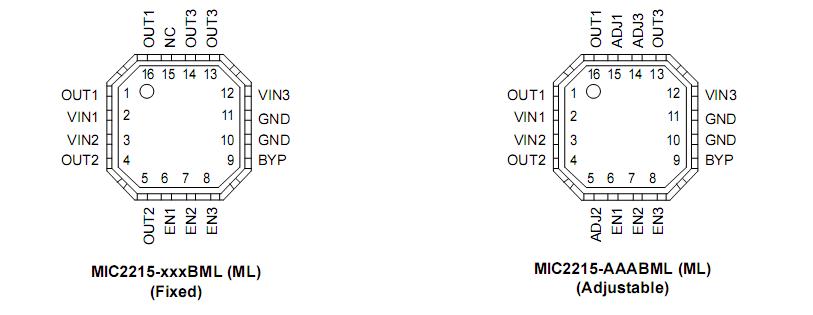

Connection Diagram


Specifications

Supply Input Voltage (VIN )....................................0V to +7V
Enable Input Voltage (VEN).....................................0V to +7V
Power Dissipation (PD)...........................Internally Limited(3)
Junction Temperature (TJ )........................-40°C to +125°C
Storage Temperature (TS)...........................-65°C to 150°C
Lead Temperature (soldering, 5 sec.).........................260°C


Description

  The MIC2215 is a high performance, triple LDO voltage regulator, with each regulator capable of providing 250mA continuous output current. Ideal for battery operated applications, the MIC2215 offers 1% initial accuracy, extremely low dropout voltage (100mV@ 150mA), and low ground current at light load (typically 110?A per regulator).

   Equipped with a noise bypass pin and featur-ing very high  power supply ripple rejection (PSRR)  of up to 80dB, the MIC2215 provides the lowest noise and highest efficiency solution for RF applications in portable electronics such as cellular phones and wireless LAN applications.
