Features:

• 2.7 to 5.5V supply voltage
• 2MHz PWM mode
• Output current to 3A
• >94% efficiency
• 100% maximum duty cycle
• Adjustable output voltage option down to 1V
• Ultra-fast transient response
• Ultra-small external components Stable with a 1H inductor and a 4.7F output capacitor
• Fully integrated 3A MOSFET switch
• Micropower shutdown
• Thermal shutdown and current limit protection
• Pb-free 3mm x 3mm MLF-12L package
• 40°C to +125°C junction temperature range




Application

• 5V or 3.3V Point of Load Conversion
• Telecom/Networking Equipment
• Set Top Boxes
• Storage Equipment
• Video Cards




Pinout

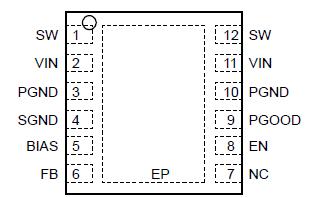

Connection Diagram




Specifications

Supply Voltage (VIN)............................................+6V
Output Switch Voltage (VSW)...............................+6V
Output Switch Current (ISW)................................11A
Logic Input Voltage (VEN)........................-0.3V to VIN
Storage Temperature (Ts).............-60°C to +150°C
ESD Rating(3)........................................................2kV




Description

The Micrel MIC2207 is a high efficiency PWM buck (step-down) regulators that provides up to 3A of output current. The MIC2207 operates at 2MHz and has proprietary internal compensation that allows a closed loop bandwidth of over 200KHz.

The low on-resistance internal p-channel MOSFET of the MIC2207 allows efficiencies over 94%, reduces external components count and eliminates the need for an expensive current sense resistor.

The MIC2207 operates from 2.7V to 5.5V input and the output can be adjusted down to 1V. The devices can operate with a maximum duty cycle of 100% for use in low-dropout conditions.

The MIC2207 is available in the exposed pad 3mm x 3mm MLF-12L package with a junction operating range from 40°C to +125°C.
