MIC2007

Features:

• 70m typical on-resistance
• 2.5V 5.5V operating range
• User adjustable current limit: 0.2A 2.0A
• Kickstart™
• User adjustable output slew rate control
• Automatic load discharge
• Thermal protection
• Under voltage lock-out
• Low quiescent current


Application

• USB / IEEE 1394 power distribution
• Desktop and laptop PCs
• Set top boxes
• Game consoles
• PDAs
• Printers
• Docking stations
• Chargers

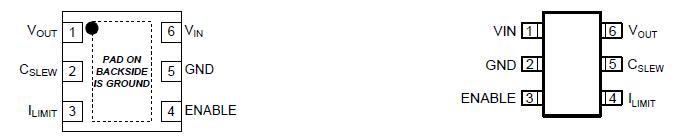

Pinout




Specifications

All pins..........................................................0.3 to 6V
Power Dissipation..............................Internally Limited
Continuous Output Current................................. 2.25A
Maximum Junction Temperature........................ 150°C
Storage Temperature.......................65°C to 150°C


Description

The MIC2007 and MIC2017 are current limiting, high-side power switches, designed for general purpose power distribution and control in PCs, PDAs, printers and other self-powered systems.

The MIC2007 and MIC2017's primary functions are current limiting and power switching. They are thermally protected and will shutdown should their internal temperature reach unsafe levels. This protects both the MIC2007 and MIC2017 and the load under high current or fault conditions.

MIC2007 and MIC2017 features include: user adjustable output slew rate limiting, automatic load discharge and under voltage detection. Both devices offer user programmable current limiting thereby providing designers a continuous spectrum of current limits from 200mA to 2 Amps.

The MIC2017 offers a unique new feature: Kickstart™, which allows momentary high current surges to pass unrestricted without sacrificing overall system safety.

The MIC2007 and MIC2017 are excellent choices for USB and IEEE 1394 (FireWire) applications or for any system where current limiting and power control are desired.

The MIC2007 and MIC2017 are offered in space saving 6-pin SOT-23 and 2mm x 2mm MLFTM packages.
