Features:

• Input impedance variants:
    - 600
    - 200 + 680 // 0.1mF
    - 200 + 560 // 0.1mF
• Operates with a wide range of battery voltages
• Constant current battery feed with constant voltage fallback for long loop drive capabilities
• Overvoltage and short circuit protection
• Off-hook detection and LED indicator drive
• Dial pulse detection
• Ring trip filter with auto ring trip
• Ring relay driver plus three more uncommitted relay drivers
• Transformerless 2W to 4W conversion
• A/D and D/A conversion
• Conforms to A-Law PCM
• Analog and digital loopback
• Conforms to CCITT k.20 overvoltage surge requirements with external primary protection circuitry



Application

• Off premise digital PBX line cards
• DID (Direct Inward Dial) line cards
• PABX, Key Systems, Central Office Equipment



Pinout

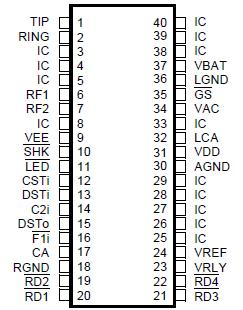

  Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Units
1
DC Supply Voltage
VDD
-0.3
7
V
VEE
0.3
-7
2
DC Battery Voltage
VBAT
0.3
-65
V
3
DC Ring Relay Voltage
VRLY
-0.3
7
V
4
DC Reference Voltage
VREF
-0.3
VDD
V
5
AC Ring Generator Voltage
150
VRMS
6
DC Digital Input Voltage
GS, CSTi
DSTi, C2i
F1i
-0.3
VDD
V
7
DC Digital (3-level) Input voltage
CA
VEE
VDD
V
8
Storage Temperature
TS
-40
+125
°C



Description

The Mitel MH89625C SLIC (Subscriber Line Interface Circuit) provides a complete interface between an off-premise telephone line and a digital switching system. All BORSCHT functions of Battery Feed, Overvoltage Protection, Ringing Feed, Line Supervision, Codec, 2-4 Wire Hybrid and Test MH89625C are provided requiring only a few external components.

The input impedance conforms with Chinese standard requirements. The MH89625C is fabricated using thick film hybrid technology which incorporates various technologies for high voltage capability, optimum circuit design and very high reliability.
