Product Details

Description



Features:

· FM- and AM-audio modulator
· Audio carrier output for suppression of harmonics
· Sync level clamping of video input signal
· Controlling of peak white value
· Continuous adjustment of modulation depth for positive or negative values
· Symmetrical mixer output with separate ground area
· Symmetrical oscillator with separate RF-ground
· Low spurious radiation
· High stability of the RF-oscillator frequency
· High stability of the audio oscillator
l Internal reference voltage
l 12 V supply voltage

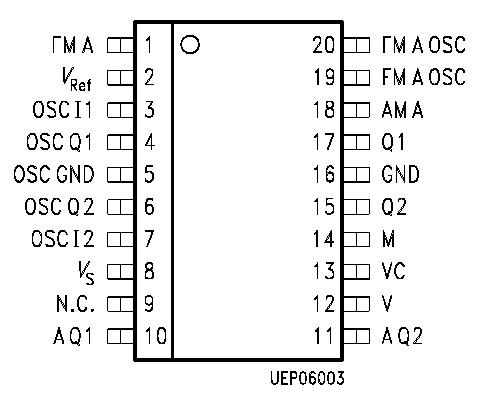

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Remark
Min
Typ
Max
Supply voltage pin 8
VS
- 0.3
14.5
V
Current from pin 2
- I2
0
2
mA
V2 =
7-8 V,
VS = 10-13.5 V
Voltage at pin 1
Voltage at pin 2
Voltage at pin 12
V1
V2
V10
0
6
0
2
8.5
1.5
V
V
Vpp
only via C (max.1 mF)
Capacitance at pin 2
Capacitance at pin 13
C2
C13
0
0
100
15
nF
mF
Voltage at pin 14
Voltage at pin 15
Voltage at pin 17
Voltage at pin 18
V14
V15
V17
V18
- 0.3
V2
V2
V2 - 1.5
1.4
13.5
13.5
V2 + 1.5
V
V
V
V



VS = 10-13.5 V



Description

The monolithic integrated circuit MGM 3000X is especially suitable as a modulator for the 48 to 860 MHz frequency range.Video recorders, cable converters, TV-converter networks, demodulators, video generators, video security systems, amateur TV-applications and personal computers.

The MGM 3000X   RF-oscillator is available at pins 3 - 7. The MGM 3000X  oscillator operates as a symmetrical Colpitts circuit. The oscillator chip ground, pin 5, should be connected to ground at the resonance circuit shielding point. An external oscillator can be injected inductively or capacitively via pins 3 and 7. The layout of the PCB should be such as to provide a minimum shielding attenuation between the oscillator pins 3 - 7 and modulator output pins 15 - 17 of approximately 80 dB.
