Product Details

Description



Features:

The followings are some of the features on the hardware and software :
`Fully COMS static design
`8-bit data bus
`On chip ROM size : 2 K words
`Internal RAM size : 80 bytes (72 general purpose, 8 special registers)
`36 single word instructions
`14-bit instructions
`2-level stacks
`Operating voltage : 2.3 V ~ 6.3 V
`Operating frequency : 0 ~ 20 MHz
`The most fast execution time is 200 ns under 20 MHz in all single cycle instructions except the branch instruction.
`Addressing modes include direct, indirect and relative addressing modes
`Power-on Reset
`Power Edge-detector Reset
`Sleep mode for power saving
`4 oscillator start-up time : 150 ms, 20 ms, 40 ms, 80 ms
`8-bit real time clock/counter(RTCC) with 8-bit programmable prescaler
`4 types of oscillator can be selected by code options :
RC-Low cost RC oscillator
LFXT-Low frequency crystal oscillator
XTAL-Standard crystal oscillator
HFXT-High frequency crystal oscillator
`On-chip RC oscillator based Watchdog Timer(WDT) can be operated freely




Application

The application areas of this MDT2020 range from appliance motor control and high speed automotive to low power remote transmitters/receivers, pointing devices, and telecommunications processors, such as Remote controller, small instruments, chargers, toy, automobile and PC peripheral . etc.




Pinout

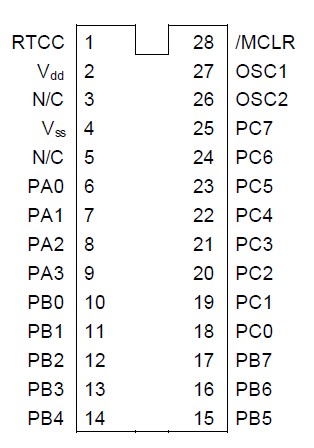

  Connection Diagram


Description

This MDT2020 EPROM-Based 8-bit micro-controller uses a fully static CMOS design technology combines higher speed and  maller size with the low power and high noise immunity of CMOS.On chip memory system includes 2.0 K bytes of ROM, and 80 bytes of static RAM.
