MDT10P72

Features: The followings are some of the features on the hardware and software :` Fully CMOS static design` 8-bit data bus` On chip EPROM size : 2.0 K words` Internal RAM size : 160 bytes (128 general purpose registers, 32 special registers)` 37 single word instructions` 14-bit instructions` 8-lev...

product image

MDT10P72 Picture
See larger image
SeekIC No. : 004419051 Detail

MDT10P72: Features: The followings are some of the features on the hardware and software :` Fully CMOS static design` 8-bit data bus` On chip EPROM size : 2.0 K words` Internal RAM size : 160 bytes (128 gener...

MDT10P72 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MDT10P72
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The followings are some of the features on the hardware and software :
`  Fully CMOS static design
`  8-bit data bus
`  On chip EPROM size : 2.0 K words
`  Internal RAM size : 160 bytes
  (128 general purpose registers, 32 special registers)
`  37 single word instructions
`  14-bit instructions
`  8-level stacks
`  Operating voltage : 2.5 V ~ 5.5 V (PRD Disable)
  4.5 V ~ 5.5 V (PRD Enable)
`  Operating frequency : DC ~ 20 MHz
`  The most fast execution time is 200 ns under 20
  MHz in all single cycle instructions except the
  branch instruction
`  Addressing modes include direct, indirect and
  relative addressing modes
`  Power-on Reset
`  Power edge-detector Reset
`  Power range-detector Reset
`  Sleep Mode for power saving
`  Capture,Compare,PWM module
`  Synchronous serial port with SCM
`  8 interrupt sources:
  -External INT pin
  -TMR0 timer,TMR1 timer,TMR2 timer
  -A/D conversion completion
  -PortB<7:4> interrupt on change
  -CCP,SCM
`  A/D converter module:
  -5 analog inputs multiplexed into one A/D
  converter
 -  8-bit resolution
`  TMR0 : 8-bit real time clock/counter
T  MR1 : 16-bit real time clock/count
  TMR2 : 8-bit clock/counter(internal)
`  4 types of oscillator can be selected by
  programming option:
  RC-Low cost RC oscillator
  LFXT-Low frequency crystal oscillator
  XTAL-Standard crystal oscillator
  HFXT-High frequency crystal oscillator
`  On-chip RC oscillator based Watchdog Timer(WDT)
`  22 I/O pins with their own independent direction control


Application

The application areas of this MDT10P72 range from appliance motor control and high speed auto-motive to low power remote transmitters/receivers, pointing devices, and telecommunications processors, such as Remote controller, small instruments, chargers, toy, automobile and PC peripheral . etc.




Pinout

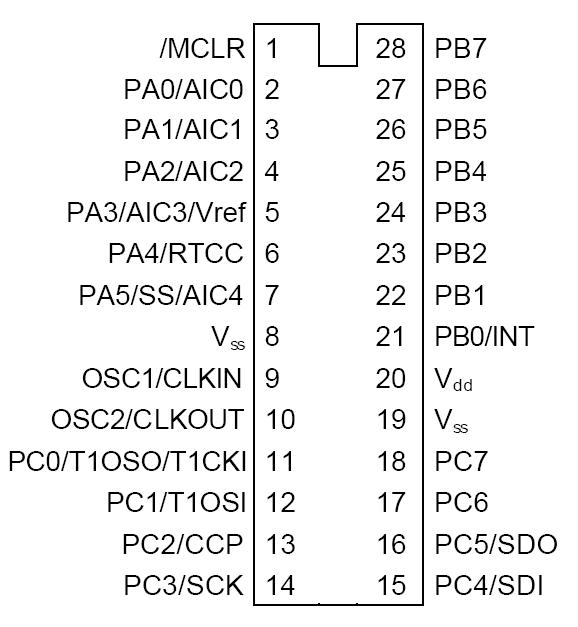

Connection Diagram


Description

This MDT10P72 EPROM-Based 8-bit micro-controller uses a fully static CMOS technology process to achieve higher speed and smaller size with the low power consumption and high noise immunity. On chip memory includes 2K words of ROM, and 128 bytes of static RAM.
