MD6052USZ-1 Selling Leads, Price trend, MD6052USZ-1 DataSheet download, circuit diagram from SeekIC.com

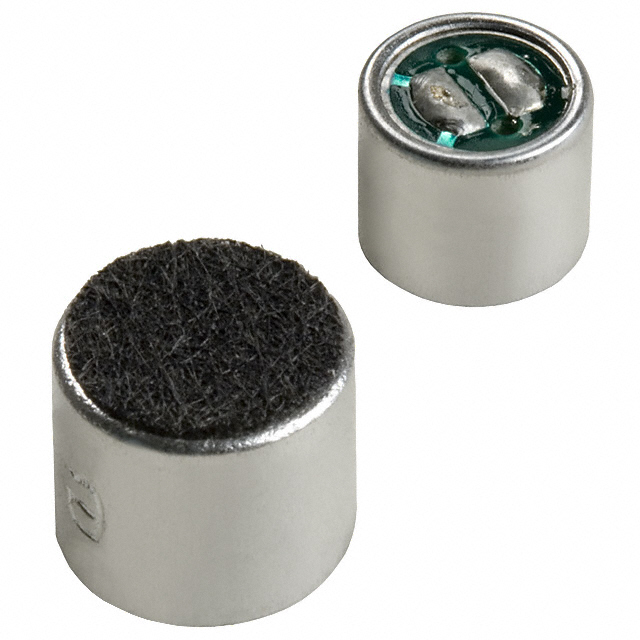

See larger image

SeekIC No. : 002845737 Detail

MD6052USZ-1: MIC CONDENSER ELECT-42+-3DB SOLD

MD6052USZ-1 Data Sheet

Get Latest Price

Part Number:: MD6052USZ-1
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MD60-19P evaluate
US $.81 - 1.04 / Piece

HDMI / Displayport / DVI Connectors 19P M R/A RECEPT SMT BRD MNT HDMI
MD60-19PA evaluate
US $1.25 - 1.66 / Piece

HDMI / Displayport / DVI Connectors 19P M R/A RECEPT SMT HDMI STANDRD CONNECT
MD6022APC-0 evaluate
MIC CONDENSER ELECT -42+-3DB PIN

Product Details

Quick Details

Series:	MD	Manufacturer:	Knowles Acoustics
Type:	Electret Condenser	Output Type:	Analog
Operating Supply Voltage :	2.6 V to 3.6 V	Direction:	Unidirectional
Frequency Range:	100Hz ~ 10kHz	Sensitivity:	-42dB ±3dB
S/N Ratio:	55dB	Impedance:	2.2 kOhm
Voltage - Rated:	2V	Current - Supply:	500µA
Port Location:	Top	Seal Rating:	None
Termination:	Solder Pads	Size / Dimension:	6.00mm Dia
Height (Max):	5.20mm	Shape:	Circular

Description

Type: Electret Condenser
Output Type: Analog
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Termination: Solder Pads
Sensitivity: -42dB ±3dB
Size / Dimension: 6.00mm Dia
Height (Max): 5.20mm
Direction: Unidirectional
S/N Ratio: 55dB
Voltage - Rated: 2V
Frequency Range: 100Hz ~ 10kHz
Manufacturer: Knowles Acoustics
Series: MD

Parameters:

Technical/Catalog Information	MD6052USZ-1
Vendor	Knowles Acoustics
Category	Audio Products
Sensitivity	-42dB ±3dB
Voltage - Rated	2V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 6mm Dia x 5.2mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	55dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pads
Direction	Unidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MD6052USZ 1 MD6052USZ1 423 1022 ND 4231022ND 423-1022
