MCX18N00B

Features: • Ultra-compact size:MCX18N00A 18.3mmx 18.3mmx 8.4mmMCX18N00B 18.3mmx 18.3mmx 9.6mm• Y/C analog output• Employs a Type 1/5, 180,000-pixel color CCD image sensor• Equipped with a fixed focus lens: MCX18N00A F2.8/f = 2.9mmApplication• TV conference camerasR...

product image

MCX18N00B Picture
See larger image
SeekIC No. : 004418808 Detail

MCX18N00B: Features: • Ultra-compact size:MCX18N00A 18.3mmx 18.3mmx 8.4mmMCX18N00B 18.3mmx 18.3mmx 9.6mm• Y/C analog output• Employs a Type 1/5, 180,000-pixel color CCD image sensor• Eq...

MCX18N00B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCX18N00B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra-compact size:
MCX18N00A 18.3mm x 18.3mmx 8.4mm
MCX18N00B 18.3mm x 18.3mmx 9.6mm
• Y/C analog output
• Employs a Type 1/5, 180,000-pixel color CCD image sensor
• Equipped with a fixed focus lens: MCX18N00A F2.8/f = 2.9mm


Application


• TV conference cameras
• Image input cameras


Pinout

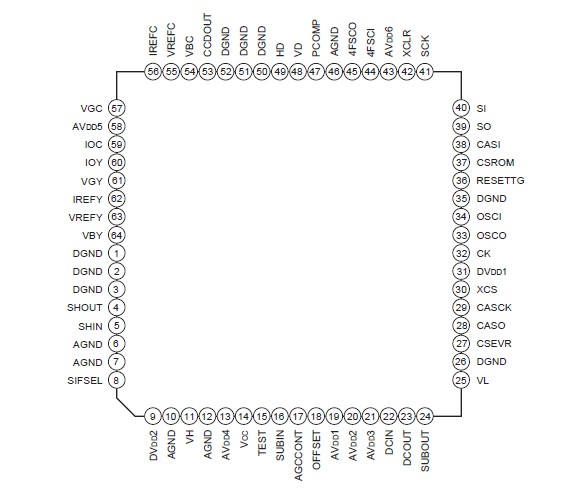

Connection Diagram


Specifications

• Supply voltage VH ..........+18 V
DVDD1, DVDD2, AVDD6 ........+7.0 V
AVDD1, AVDD2, AVDD3 ........+7.0 V
AVDD4, AVDD5.............+7.0 V
VCC .................+14.0 V
VL ..................17.5 V
• Input voltage VI...0.5 to DVDD + 0.5 V
• Operating temperature Topr .0 to +40 °C
• Storage temperature Tstg.30 to +80 °C
Recommended Operating Conditions
• Supply voltage VH......14.25 to 15.75 V
DVDD1, DVDD2, AVDD6...... 3.0 to 3.6 V
AVDD1, AVDD2, AVDD3.....4.75 to 5.25 V
AVDD4, AVDD5 ..........4.5 to 5.5 V
VCC...............4.5 to 5.25 V
VL ..............8.5 to 7.5 V
• Input voltage VDCIN ......1.0 to 4.5 V
• Operating temperature Topr. 0 to +40 °C


Description

The micro unit CCD is a MCX18N00B CCD color camera unit with built-in CCD image sensor, drive system IC, sample-and-hold IC, signal processor IC and lens system.
