MCT62H

Packaging : Tube
Maximum Operating Temperature : + 100 C
Minimum Operating Temperature : - 40 C
Maximum Collector Emitter Saturation Voltage : 0.3 V
Maximum Forward Diode Voltage : 1.6 V
Maximum Collector Current : 50 mA
Maximum Power Dissipation : 250 mW
Input Type : DC
Isolation Voltage : 5300 Vrms
Maximum Collector Emitter Voltage : 70 V
Current Transfer Ratio : 200 %
Package / Case : PDIP-8


Features:

` Current Transfer Ratio (CTR) of typical 100%
`Isolation test voltage VIO = 5 kV
`Low temperature coefficient of CTR
`Low coupling capacitance of typical 0.3 pF
`Wide ambient temperature range
` Underwriters Laboratory (UL) 1577 recognized, file number E-76222
` CSA (CUL) 1577 recognized, file number Coupling System U

Application

Galvanically separated circuits, non-interacting switches

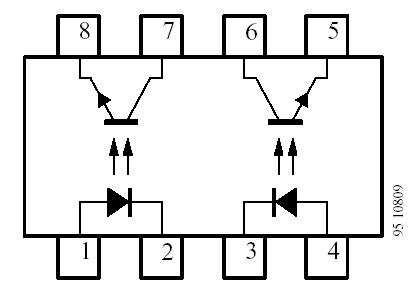

Pinout






Specifications

Parameter	Test Conditions	Symbol	Value	Unit
Reverse voltage		VR	6	V
Forward current		I F	60	mA
Forward surge current	tp 3 10 s	IFSM	1.5	A
Power dissipation	Tamb 3 25	PV	100	mW
Junction temperature		Tj	125

Description

The MCT6H and MCT62H consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package. The elements are mounted on one leadframe using a coplanar technique, providing a fixed distance between input and output for highest safety requirements
