MCT5210SM

High Speed Optocouplers Phototrans LoCurrent

product image

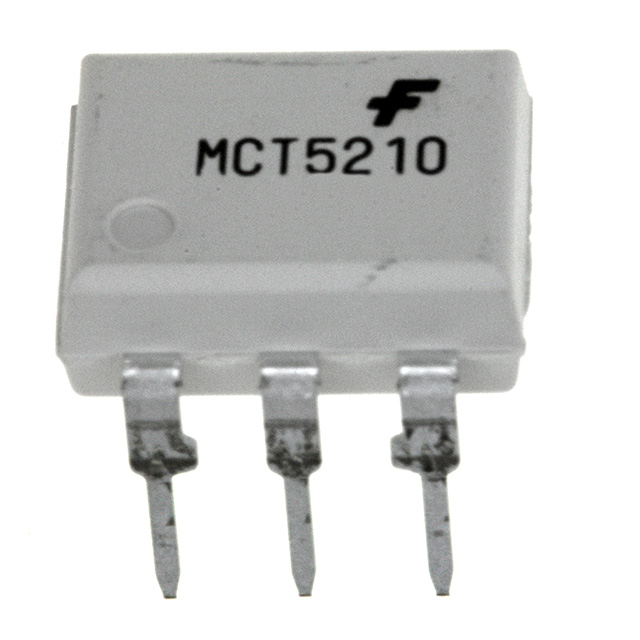

MCT5210SM Picture
See larger image
SeekIC No. : 0087964 Detail

MCT5210SM: High Speed Optocouplers Phototrans LoCurrent

MCT5210SM Data Sheet

floor Price/Ceiling Price

US $ .21~.24 / Piece | Get Latest Price
Part Number:
MCT5210SM
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1350
  • 1350~2000
  • 2000~5000
  • 5000~10000
  • Unit Price
  • $.24
  • $.23
  • $.21
  • $.21
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Baud Rate : 150 KBps Maximum Forward Diode Voltage : 1.5 V
Maximum Reverse Diode Voltage : 6 V Maximum Input Diode Current : 50 mA
Maximum Power Dissipation : 260 mW Maximum Operating Temperature : + 100 C
Minimum Operating Temperature : - 40 C Package / Case : SMD-6
Packaging : Bulk

Description

Current Transfer Ratio :
Maximum Operating Temperature : + 100 C
Minimum Operating Temperature : - 40 C
Packaging : Bulk
Maximum Input Diode Current : 50 mA
Maximum Forward Diode Voltage : 1.5 V
Package / Case : SMD-6
Maximum Reverse Diode Voltage : 6 V
Maximum Power Dissipation : 260 mW
Maximum Baud Rate : 150 KBps


Parameters:

Technical/Catalog InformationMCT5210SM
VendorFairchild Optoelectronics Group
CategoryIsolators
Voltage - Isolation5300Vrms
Input TypeDC
Output TypeTransistor with Base
Current - Output / Channel150mA
Voltage - Output30V
Vce Saturation (Max)400mV
Current Transfer Ratio (Min)60% @ 3mA
Mounting TypeSurface Mount
Package / Case6-SMD
PackagingTube
Number of Circuits1 - Single
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MCT5210SM
MCT5210SM
