MCP6271

Features:

• Gain Bandwidth Product: 2 MHz (typ.)
• Supply Current: IQ = 170 A (typ.)
• Supply Voltage: 2.0V to 5.5V
• Rail-to-Rail Input/Output
• Extended Temperature Range: -40°C to +125°C
• Available in Single, Dual and Quad Packages
• Single with Chip Select (CS) (MCP6273)
• Dual withChipSelect (CS) (MCP6275)

Application

• Automotive
• Portable Equipment
• Photodiode Amplifier
• Analog Filters
• Notebooks and PDAs
• Battery-Powered Systems

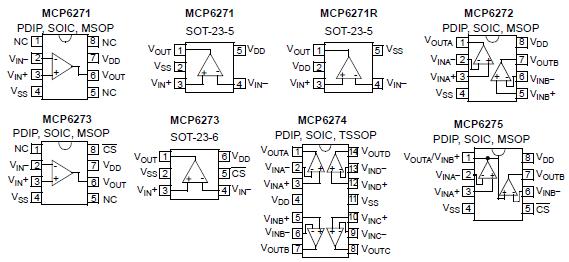

Pinout






Specifications

Parameter Name	Value
Temp. Range (°C)	-40°C to +125°C
Vos Max (V)	3000
# per Package	1
Iq Typical (A)	170
Iq Max (A)	240
GBWP (kHz)	2000
Operating Voltage Range (V)	2.0 to 6.0
Device Description	Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))	20
PSRR Min (dB)	70
CMRR Min (dB)	65
Vos/Ta (uV/°C)	1.7
Ib (pA)	1
Aol (dB)	110
PM (deg)	65
Isc (mA)	25
Rail-to-Rail	In/Out

Parameter NameValueTemp. Range (°C)-40°C to +125°C Vos Max (V)3000# per Package1Iq Typical (A)170Iq Max (A)240GBWP (kHz)2000Operating Voltage Range (V)2.0 to 6.0Device DescriptionLinear Op AmpsInput Voltage Noise Density (nV/rt(Hz))20PSRR Min (dB)70CMRR Min (dB)65Vos/Ta (uV/°C)1.7Ib (pA)1Aol (dB)110PM (deg)65Isc (mA)25Rail-to-RailIn/Out

Absolute Maximum Ratings †
V_DD V_SS ........................................................................7.0V
All Inputs and Outputs ................... V_SS 0.3V to V_DD + 0.3V
Difference Input Voltage ..................................... |V_DD V_SS|
Output Short Circuit Current ................................Continuous
Current at Input Pins ...................................................±2 mA
Current at Output and Supply Pins ............................±30 mA
Storage Temperature.................................-65°C to +150°C
Junction Temperature (T_J) . .......................................+150°C
ESD Protection On All Pins (HBM/MM) ................. 4 kV/400V

† Notice: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied Exposure to maximum rating conditions for extended periodsmay affect device reliability.




Description

The Microchip Technology Inc. MCP6271/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 2 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.0V, while drawing 170 A (typ.) quiescent current. Additionally, the MCP6271/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of V_DD + 300mV to V_SS 300 mV. This family of operational amplifiers is designed with Microchip's advanced CMOS process.

The MCP6271 has a Chip Select input (CS) for dual op amps in an 8-pin package and is manufactured by cascading two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CSinput puts the device in Low-power mode.

The MCP6271/2/3/4/5 family operates over the Extended Temperature Range of -40°C to +125°C, with a power supply range of 2.0V to 5.5V.
