MCP617

Features:

`Low Input Offset Voltage:±150V (max)
`Low Noise: 2.2_P-P(typ., 0.1Hz to 10Hz)
`Rail-to-Rail Output
`Low Input Offset Current: 0.3nA (typ.)
`Low Quiescent Current: 25A (max.
`Power Supply Voltage: 2.3V to 5.5V
`Unity Gain Stable
`ChipSelect(CS) Capability: MCP618
`Industrial Temperature Range: -40 to +85
`No Phase Reversal
`Available in Single, Dual and Quad Packages

Application

·Battery Power Instruments
·Weight Scales
·Strain Gauges
·Medical Instruments
·Test Equipment

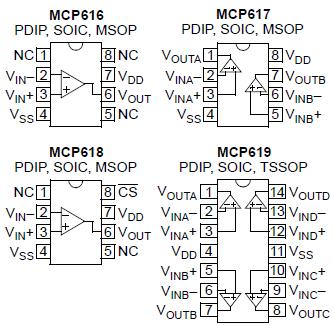

Pinout






Specifications

Parameter Name	Value
Temp. Range (°C)	-40°C to +85°C
Vos Max (V)	150
# per Package	2
Iq Typical (A)	19
Iq Max (A)	25
GBWP (kHz)	190
Operating Voltage Range (V)	2.3 to 5.5
Device Description	Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))	32
PSRR Min (dB)	86
CMRR Min (dB)	80
Vos/Ta (uV/°C)	2
Ib (pA)	15000
Aol (dB)	115
PM (deg)	57
Isc (mA)	17
Rail-to-Rail	Out

Absolute Maximum Ratings †
V_DD V_SS ........................................................................7.0V
All Inputs and Outputs ................... V_SS 0.3V to V_DD + 0.3V
Difference Input Voltage ..................................... |V_DD V_SS|
Output Short Circuit Current ................................Continuous
Current at Input Pins ...................................................±2 mA
Current at Output and Supply Pins ............................±30 mA
Storage Temperature.................................-65°C to +150°C
Junction Temperature (T_J) . .......................................+150°C
ESD Protection On All Pins (HBM;MM) ............. 4 kV;200V

† Notice: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied Exposure to maximum rating conditions for extended periodsmay affect device reliability.




Description

The MCP617 dual operational amplifier (op amp) has a gain bandwidth product of 190 kHz with a low typical operating current of 19 A and an offset voltage that is less than 150 V. The MCP617 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP617 operates with a single supply voltage that can be as low as 2.3V, while drawing less than 25 A of quiescent current per amplifier. The MCP617 is available in standard 8-lead PDIP, SOIC and MSOP packages. This amplifier is ideal for battery and loop-powered applications as well as industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

The MCP616/7/8/9 family of operational amplifiers (op amps) from Microchip Technology Inc. are capable of precision, low-power, single-supply operation. These op amps are unity-gain stable, have low input offset voltage (±150V, max.), rail-to-rail output swing a low input offset current (0.3nA, typ.). These features make this family of op amps well suited for battery- powered applications.

The single MCP616, the single MCP618 withChipSelect (CS) and the dual MCP617 are all available in standard 8-lead PDIP, SOIC and MSOP packages. The quad MCP619 is offered in standard 14-lead PDIP, SOIC and TSSOP packages. All devices are fully specified from -40!aC to +85!aC, with power suppli from 2.3V to 5.5V.
