MCP6042

Specifications

Parameter NameValueTemp. Range (°C)-40°C to +85°C Vos Max (V)3000# per Package2Iq Typical (A)0.6Iq Max (A)1GBWP (kHz)14Operating Voltage Range (V)1.4 to 6.0Device DescriptionLinear Op AmpsInput Voltage Noise Density (nV/rt(Hz))170PSRR Min (dB)70CMRR Min (dB)62Vos/Ta (uV/°C)1.5Ib (pA)1Aol (dB)115PM (deg)65Isc (mA)21Rail-to-RailIn/Out

Parameter Name	Value
Temp. Range (°C)	-40°C to +85°C
Vos Max (V)	3000
# per Package	2
Iq Typical (A)	0.6
Iq Max (A)	1
GBWP (kHz)	14
Operating Voltage Range (V)	1.4 to 6.0
Device Description	Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))	170
PSRR Min (dB)	70
CMRR Min (dB)	62
Vos/Ta (uV/°C)	1.5
Ib (pA)	1
Aol (dB)	115
PM (deg)	65
Isc (mA)	21
Rail-to-Rail	In/Out

Description

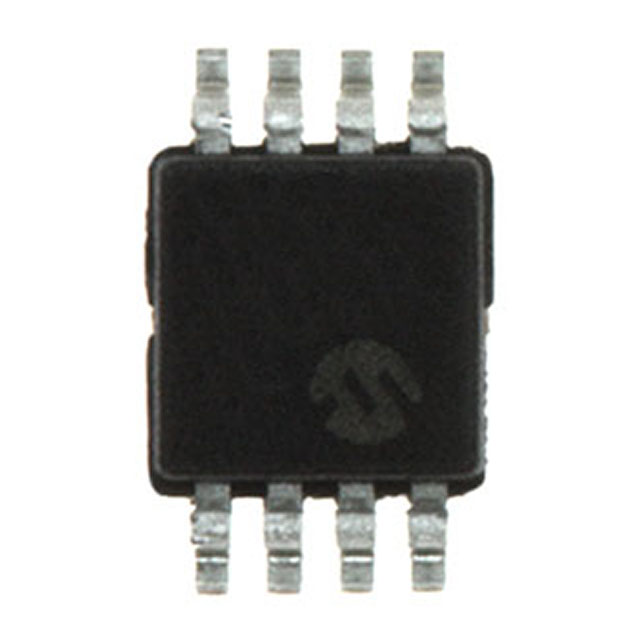

The MCP6042 dual operational amplifier (op amp) has a gain bandwidth product of 14 kHz with a low typical operating current of 600 nA and an offset voltage that is less than 3 mV. The MCP6042 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6042 operates with a single supply voltage that can be as low as 1.4V, while drawing less than 1.0 of quiescent current per amplifier. The MCP6042 is available in standard 8-lead PDIP, SOIC and MSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment and wearable products.
