MCP201

Features:

• Supports baud rates up to 20 Kbaud
• 40V load dump protected
• Wide supply voltage, 6.0 18.0V, continuous
- Maximum input voltage of 30V
• Extended Temperature Range: -40°C to +125°C
• Interface to standard USARTs
• Compatible with LIN Spec 1.3
• Local Interconnect Network (LIN) Line pin:
- Internal pull-up resistor and diode
- Protected against ground shorts (LIN pin to ground)
- Protected against LIN pin loss of ground
- High current drive, 40 mA I_OL 200 mA
• Automatic thermal shutdown
• On-board Voltage Regulator:
- Output voltage of 5V with ±5% tolerances over temperature range
- Maximum output current of 50 mA
- Able to drive an external series-pass transistor for increased current supply capability
- Internal thermal overload protection
- Internal short-circuit current limit
- External components limited to filter capacitor only and load capacitor

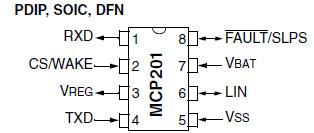

Pinout






Specifications

Absolute Maximum Ratings†
V_IN DC Voltage on Logic pins except CS/WAKE .................................................... -0.3 to V_REG+0.3V
V_IN DC Voltage on CS/WAKE .................................................................................-0.3 to V_BAT+0.3V
V_BAT Battery Voltage, non-operating (LIN bus recessive, no regulator load, t < 60s)....-0.3 to +40V
V_BAT Battery Voltage, transient (Note 1)........................................................................-0.3 to +40V
V_BAT Battery Voltage, continuous ...................................................................................-0.3 to +30V
V_LBUS Bus Voltage, continuous.........................................................................................-18 to +30V
V_LBUS Bus Voltage, transient (Note 1)..............................................................................-27 to +40V
I_LBUS Bus Short Circuit Current Limit .......................................................................................200 mA
ESD protection on LIN, VBAT (Human Body Model) (Note 2) ........................................................>4 kV
ESD protection on all other pins (Human Body Model) (Note 2) ...................................................>2 kV
Maximum Junction Temperature................................................................................................. 150°C
Storage Temperature ....................................................................................................-55 to +150°C

Note 1: ISO 7637/1 load dump compliant (t < 500 ms).
2: According to JESD22-A114-B.
† NOTICE: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This
is a stress rating only and functional operation of the device at those or any other conditions above those indicated in
the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Parameter Name	Value
Description	LIN Transceiver with integrated Vreg
Vreg Output Current (mA)	50
Max. Baud Rate (kBaud)	20
Vcc Range (V)	6.0 to 18

Description

The MCP201 provides a physical interface between amicrocontroller and a LIN half-duplex bus. It is intendedfor automotive and industrial applications with serialbus speeds up to 20 Kbaud. It provides a half-duplex, bidirectional communications interface between a microcontroller and the serial network bus. This MCP201 will translate the CMOS/TTL logic levels to LIN level logic, and vice versa. The regulator MCP201 has been specificallydesigned to operate in the automotive environmentand will survive reverse battery connections,+40V load dump transients and double-battery jumps.
