MCP1630

Features:

• High-Speed PWM Operation (12 ns Current Sense to Output Delay)
• Operating Temperature Range: -40°C to +125°C
• Precise Peak Current Limit (±5%)
• CMOS Output Driver (Drives MOSFET Driver or Low-Side N-channel MOSFET Directly)
• External Oscillator Input (from PICmicro® Microcontroller)
• External Voltage Reference Input (for adjustable voltage or current output application)
• Peak Current Mode Operation to 1 MHz
• Low Operating Current: 2.8 mA, typical
• Fast Output Rise and Fall Times (5.9 ns and 6.2 ns)
• Undervoltage Lockout
• Output Short Circuit Protection
• Overtemperature Protection

Application

• Intelligent Power Systems
• Smart Battery Charger Applications
• Multiple Output/Multiple Phase Converters
• Output Voltage Calibration
• AC Power Factor Correction
• VID Capability (Programmed and calibrated by PICmicro Microcontroller)
• Buck/Boost/Buck-Boost/SEPIC/Flyback/Isolated Converters
• Parallel Power Supplies

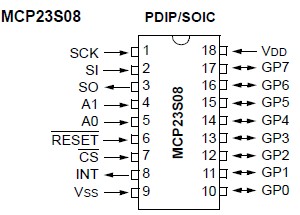

Pinout






Specifications

Parameter NameValueQuiescent Current (mA)2.8Max. Frequency1000Input Voltage Range (V)2.7 to 5.5

Parameter Name	Value
Quiescent Current (mA)	2.8
Max. Frequency	1000
Input Voltage Range (V)	2.7 to 5.5

V_DD.............................................................................................6.0V
Maximum Voltage on Any Pin ..............(V_GND - 0.3)V to (V_IN + 0.3)V
V_EXT Short Circuit Current ....................................Internally Limited
Storage temperature ..........................................-65°C to +150°C
Maximum Junction Temperature, T_J ....................................+150°C
Continuous Operating Temperature Range ........-40°C to +125°C
ESD protection on all pins, Human Body Model......................... 3 kV
† Notice: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Description

The MCP1630 is a high-speed Pulse Width Modulator (PWM) used to develop intelligent power systems. When used with a microcontroller, the MCP1630 will control the power system duty cycle to provide output voltage or current regulation. The MCP1630 inputs are designed to be easily attached to the I/O of a microcontroller, which supplies the reference and oscillator to the MCP1630, to generate a flexible and adaptable power system.
