MCP131X

` Low supply current: 1 A (typ.), 10 A (max.)
` Precision monitoring trip point options:
- 2.9V and 4.6V (Standard Offerings)
- 2.0V to 4.7V in 100 mV increments,
(Contact the local Microchip Sales Office)
` Resets microcontroller in a power-loss event
` Reset Delay Time Out Option:
- 1.4 ms, 30 ms, 200 ms, or 1.6s (typ.)
` Watchdog Timer Input Time Out Options:
- 6.3 ms, 102 ms, 1.6s or 25.6s (typ.)
` Manual Reset (MR) input (active-low)
` Single and complementary Reset output(s)
` Reset Output Options:
- Push-Pull (active-high or active-low)
- Open-Drain (internal or external Pull-up)
` Temperature Range: -40°C to +125°C
` Voltage Range: 1.0V to 5.5V
` Lead Free Packaging

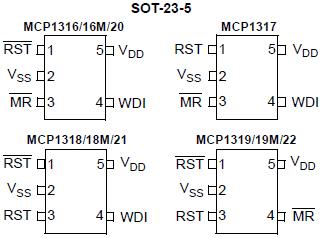

Absolute Maximum Ratings†

Supply Voltage (V_DD to V_SS) . . . . . . . . . . . . . . . . . . . . . . 7.0V
Input current (V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 mA
Output current (RST) . . . . . . . . . . . . . . . . . . . . . . ... . . .10 mA
Voltage on all inputs and outputs, except Open-Drain RST
(with no internal pull-up resistor), w.r.t. V_SS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . -0.6V to (V_DD + 1.0V)
Voltage on Open-Drain RST
(with no internal pull-up resistor) w.r.t. V_SS . .. -0.6V to 13.5V
Storage temperature . . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient temp. with power applied . . . . . ..-40°C to +125°C
Maximum Junction temp. with power applied . . . . . .. . 150°C
Power Dissipation (T_A 70°C):
5-Pin SOT-23A ............................................................240 mW
ESD protection on all pins ............................................. 4 kV
† Notice: Stresses above those listed under'Maximum Ratings 'may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

The MCP131X are voltage supervisor devices designed to keep a microcontroller in Reset until the system voltage has reached and stabilized at the proper level for reliable system operation. This MCP131X also offers a Watchdog Timer to monitor system operation and a Manual Reset input. The table below shows the available features for these devices.
