Product Details

Description

Features:

·Low ON-resistance.
·Ultrahigh-speed switching.
·4V drive.

Pinout

Connection Diagram

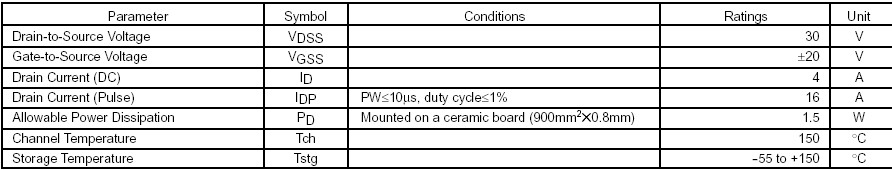

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Drain-to-Source Voltage	V_DSS		30	V
Gate-to-Source Voltage	V_GSS		±20	V
Drain Current (DC)	I_D		4	A
Drain Current (Pulse)	I_DP	PW10s, duty cycle1%	16	A
Allowable Power Dissipation	P_D	Mounted on a ceramic board (900mm²*0.8mm)1unit	1.5	W
Channel Temperature	T_ch		150
Storage Temperature	T_stg		-55 to +150
