MC9S12UF32

Features: • HCS12 Core 16-bit HCS12 CPUi. Upward compatible with M68HC11 instruction setii. Interrupt stacking and programmer's model identical to M68HC11iii. Instruction queueiv. Enhanced indexed addressing Multiplexed External Bus Interface (MEBI) Memory Mapping Control (MMC) Interrupt Con...

product image

MC9S12UF32 Picture
SeekIC No. : 004417445 Detail

MC9S12UF32: Features: • HCS12 Core 16-bit HCS12 CPUi. Upward compatible with M68HC11 instruction setii. Interrupt stacking and programmer's model identical to M68HC11iii. Instruction queueiv. Enhanced ind...

floor Price/Ceiling Price

Part Number:
MC9S12UF32
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• HCS12 Core
16-bit HCS12 CPU
i. Upward compatible with M68HC11 instruction set
ii. Interrupt stacking and programmer's model identical to M68HC11
iii. Instruction queue
iv. Enhanced indexed addressing
Multiplexed External Bus Interface (MEBI)
Memory Mapping Control (MMC)
Interrupt Control (INT)
Single-wire Background Debug Mode (BDM)
On-chip hardware Breakpoints (BKP)
• Clock and Reset Generator (CRG_U)
Clock Throttle to prescale the oscillator clock or 60Mhz clock from USB20D6E2F.
COP watchdog
Real Time Interrupt
• Memory
32K Flash EEPROM
- Internal program/erase voltage generation
- Security and Block Protect bits
3.5K byte RAM



Pinout

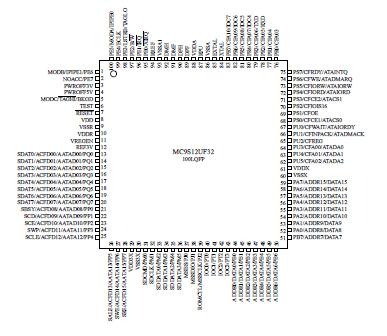

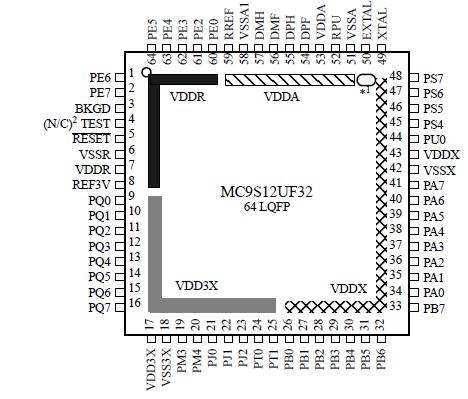

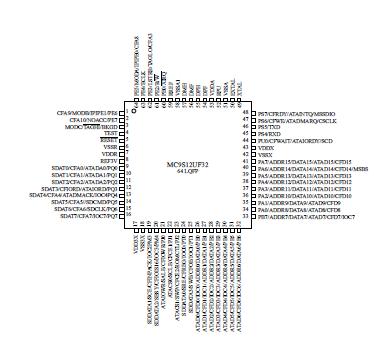

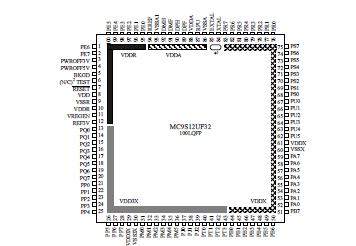

  Connection Diagram  Connection Diagram  Connection Diagram  Connection Diagram


Specifications

Absolute maximum ratings are stress ratings only. A functional operation under or outside those maxima is not guaranteed. Stress beyond those limits may affect the reliability or cause permanent damage of the device.

This device contains circuitry protecting against damage due to high static voltage or electrical fields; however, it is advised that normal precautions be taken to avoid application of any voltages higher than maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage level (e.g., either VSSX or VDDX).
Num Rating Symbol Min Max Unit
1 I/O, Regulator Voltage VDD51 -0.3 6.5 V
2 Digital Logic Supply Voltage2 VDD -0.3 3.0 V
3 USB PHY Supply Voltage 2 VDDA -0.3 4.0 V
4 Voltage difference VSSX to VSSR and VSSA VSSX -0.3 0.3 V
5 Digital I/O Input Voltage VIN -0.3 6.5 V
6 EXTAL, XTAL inputs VILV -0.3 3.0 V
7 TEST input VTEST -0.3 10.0 V
8 Instantaneous Maximum Current
Single pin limit for all digital I/O pins 3
ID -25 +25 mA
9 Instantaneous Maximum Current
Single pin limit for EXTAL, XTAL
IDL -25 +25 mA
10 Instantaneous Maximum Current
Single pin limit for TEST4
IDT -0.25 0 mA
11 Operating Temperature Range (packaged) TA 0 70
12 Operating Temperature Range (junction) TJ 0 105
13 Storage Temperature Range Tstg 65 155
