Product Details

Description



Pinout

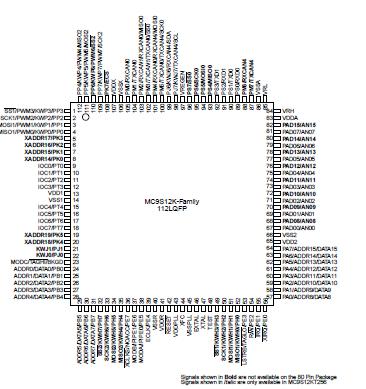

Connection Diagram


Specifications

Absolute maximum ratings are stress ratings only. A functional operation under or outside those maxima is not guaranteed. Stress beyond those limits may affect the reliability or cause permanent damage of the device.

This device contains circuitry protecting against damage due to high static voltage or electrical fields; however, it is advised that normal precautions be taken to avoid application of any voltages higher than maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage level (e.g., either VSS5 or VDD5).
Num Rating Symbol Min Max Unit
1 I/O, Regulator and Analog Supply Voltage VDD5 -0.3 6.5 V
2 Internal Logic Supply Voltage1 VDD -0.3 3.0 V
3 PLL Supply Voltage (1) VDDPLL -0.3 3.0 V
4 Voltage difference VDDX to VDDR and VDDA VDDX -0.3 0.3 V
5 Voltage difference VSSX to VSSR and VSSA VSSX -0.3 0.3 V
6 Digital I/O Input Voltage VIN -0.3 6.5 V
7 Analog Reference VRH, VRL -0.3 6.5 V
8 XFC, EXTAL, XTAL inputs VILV -0.3 3.0 V
9 TEST input VTEST -0.3 10.0 V
10 Instantaneous Maximum Current
Single pin limit for all digital I/O pins 2		 ID -25 +25 mA
11 Instantaneous Maximum Current
Single pin limit for XFC, EXTAL, XTAL3		 IDL -25 +25 mA
12 Instantaneous Maximum Current
Single pin limit for TEST4		 IDT -0.25 0 mA
13 Operating Temperature Range (packaged) TA 40 125
14 Operating Temperature Range (junction) TJ 40 140
15 Storage Temperature Range Tstg 65 155
