Product Details

Description



Features:

NOTE: Not all features listed here are available in all configurations!
• 16-bit CPU12
- Upward compatible with M68HC11 instruction set
- Interrupt stacking and programmer's model identical to M68HC11
- Instruction queue
- Enhanced indexed addressing
• 8-bit and 4-bit ports with Key Wake-Up Interrupt
- Digital filtering
- Programmable rising or falling edge trigger
• Memory options
- 128K, 256K Flash EEPROM
- 2K, 4K byte EEPROM
- 6K, 12K byte RAM
• Analog-to-Digital Converter
- 8 or 16 channels, 10-bit resolution
- External conversion trigger capability
• One or two 1M bit per second, CAN 2.0 A, B software compatible modules
- Five receive and three transmit buffers
- Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit
- Four separate interrupt channels for Rx, Tx, error and wake-up
- Low-pass filter wake-up function
- Loop-back for self test operation
• Timer
- 16-bit main counter with 7-bit prescaler
- 8 programmable input capture or output compare channels
- Two 8-bit or one 16-bit pulse accumulators
• 2 or 6 PWM channels depending on the package option
- Programmable period and duty cycle
- 8-bit 6-channel or 16-bit 3-channel
- 8-bit 2 channel or 16-bit 1 channel
- Separate control for each pulse width and duty cycle
- Center-aligned or left-aligned outputs
- Programmable clock select logic with a wide range of frequencies
• Serial interfaces
- One or two asynchronous Serial Communications Interfaces (SCI)
- Synchronous Serial Peripheral Interface (SPI)
- Inter-Integrated Circuit interface (IIC) 144LQFP
• Liquid Crystal Display driver with variable input voltage
- Configurable for up to 32 frontplanes and 4 backplanes or general purpose input or output
- 5 modes of operation allow for different display sizes to meet application requirements
- Unused frontplane and backplane pins can be used as general purpose I/O
• 24 high current drivers suited for PWM motor control
- 12 PWM channels with common frequency timebase
- Each PWM channel switchable between two drivers in an H-bridge configuration
- left, right and center aligned outputs
- Support for sin and cos drive
- Dithering
- Output slew rate limitation
• SIM (System Integration Module)
- CRG (windowed COP watchdog, real time interrupt, clock monitor, clock generation and reset)
- MEBI (multiplexed external bus interface)
- MMC (memory map and interface)
- INT (interrupt control)
- BKP (breakpoints)
- BDM (background debug mode)
• Clock generation
- Phase-locked loop clock frequency multiplier
- self clock mode in absence of external clock
- Low power 0.5 to 16MHz crystal oscillator reference clock
• 144-Pin or 112-Pin QFP package
- I/O lines with 5V input and drive capability
- 5V A/D converter inputs
- Operation at 32MHz equivalent to 16MHz Bus Speed
- Development support
- Single-wire background debug™ mode (BDM)
- On-chip hardware breakpoints

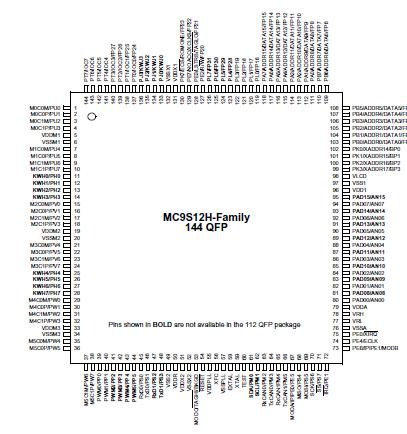

Pinout

Connection Diagram
