MC9S12DJ64112LQFP

Features: • HCS12 Core 16-bit HCS12 CPU i. Upward compatible with M68HC11 instruction set ii. Interrupt stacking and programmer's model identical to M68HC11 iii. Instruction queue iv. Enhanced indexed addressing MEBI (Multiplexed External Bus Interface) MMC (Module Mapping Control) INT (...

product image

MC9S12DJ64112LQFP Picture
SeekIC No. : 004417423 Detail

MC9S12DJ64112LQFP: Features: • HCS12 Core 16-bit HCS12 CPU i. Upward compatible with M68HC11 instruction set ii. Interrupt stacking and programmer's model identical to M68HC11 iii. Instruction queue iv. Enhance...

floor Price/Ceiling Price

Part Number:
MC9S12DJ64112LQFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• HCS12 Core
  16-bit HCS12 CPU
  i. Upward compatible with M68HC11 instruction set
  ii. Interrupt stacking and programmer's model identical to M68HC11
  iii. Instruction queue
  iv. Enhanced indexed addressing
  MEBI (Multiplexed External Bus Interface)
  MMC (Module Mapping Control)
  INT (Interrupt control)
  BKP (Breakpoints)
  BDM (Background Debug Mode)
• CRG (low current Colpitts or Pierce oscillator, PLL, reset, clocks, COP watchdog, real time interrupt, clock monitor)
• 8-bit and 4-bit ports with interrupt functionality
  Digital filtering
  Programmable rising or falling edge trigger
• Memory
  64K Flash EEPROM
  1K byte EEPROM



Pinout

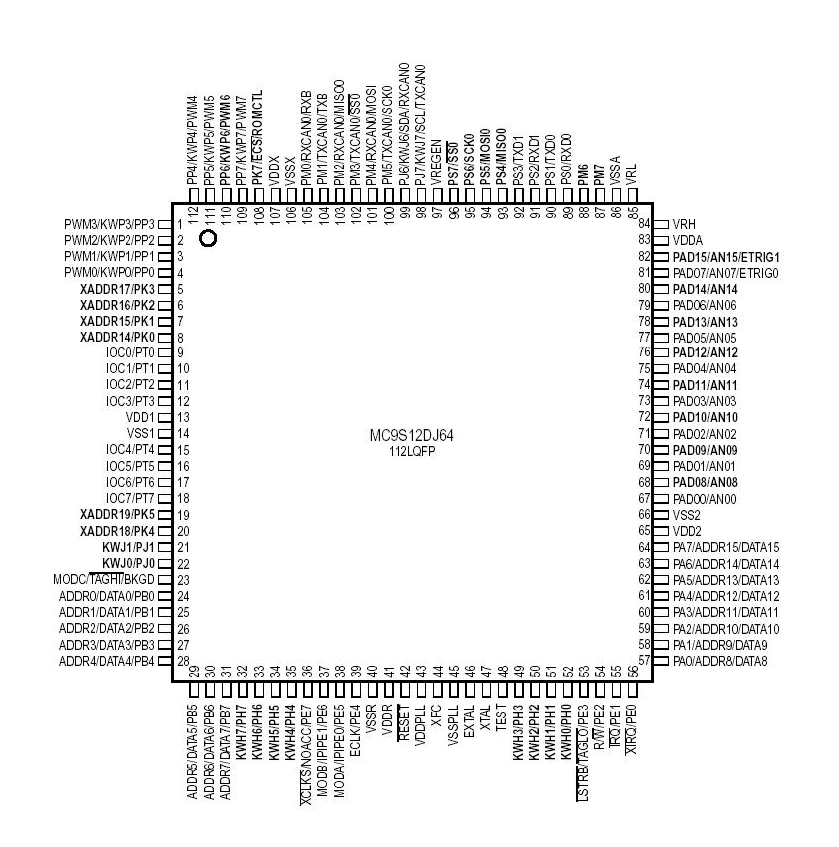

  Connection Diagram


Specifications

Absolute maximum ratings are stress ratings only. A functional operation under or outside those maxima is not guaranteed. Stress beyond those limits may affect the reliability or cause permanent damage of the device.

This device contains circuitry protecting against damage due to high static voltage or electrical fields; however, it is advised that normal precautions be taken to avoid application of any voltages higher than maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage level (e.g., either VSS5 or VDD5).

Num Rating Symbol Min Max Unit
1 I/O, Regulator and Analog Supply Voltage VDD5 -0.3 6.0 V
2 Digital Logic Supply Voltage 2 VDD -0.3 3.0 V
3 PLL Supply Voltage 2 VDDPLL -0.3 3.0 V
4 Voltage difference VDDX to VDDR and VDDA DVDDX -0.3 0.3 V
5 Voltage difference VSSX to VSSR and VSSA DVSSX -0.3 0.3 V
6 Digital I/O Input Voltage VIN -0.3 6.0 V
7 Analog Reference VRH, VRL -0.3 6.0 V
8 XFC, EXTAL, XTAL inputs VILV -0.3 3.0 V
9 TEST input VTEST -0.3 10.0 V
10 Instantaneous Maximum Current
Single pin limit for all digital I/O pins 3
ID -25 +25 mA
11 Instantaneous Maximum Current
Single pin limit for XFC, EXTAL, XTAL4
IDL -25 +25 mA
12 Instantaneous Maximum Current
Single pin limit for TEST 5
IDT -0.25 0 mA
13 Storage Temperature Range Tstg 65 155
