Product Details

Description



Features:

• HCS12 Core
  16-bit HCS12 CPU
   i. Upward compatible with M68HC11 instruction set
   ii. Interrupt stacking and programmer's model identical to M68HC11
   iii. Instruction queue
   iv. Enhanced indexed addressing
   MEBI (Multiplexed External Bus Interface)
   MMC (Module Mapping Control)
   INT (Interrupt control)
   BKP (Breakpoints)
   BDM (Background Debug Mode)
• CRG (low current Colpitts or Pierce oscillator, PLL, reset, clocks, COP watchdog, real time interrupt, clock monitor)
• 8-bit and 4-bit ports with interrupt functionality
   Digital filtering
   Programmable rising or falling edge trigger
• Memory
   64K Flash EEPROM
   1K byte EEPROM
   4K byte RAM
• Two 8-channel Analog-to-Digital Converters
   10-bit resolution
   External conversion trigger capability
• 1M bit per second, CAN 2.0 A, B software compatible module
   Five receive and three transmit buffers
   Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit
   Four separate interrupt channels for Rx, Tx, error and wake-up
   Low-pass filter wake-up function
   Loop-back for self test operation
• Enhanced Capture Timer
   16-bit main counter with 7-bit prescaler
   8 programmable input capture or output compare channels
   Four 8-bit or two 16-bit pulse accumulators
• 8 PWM channels
   Programmable period and duty cycle
   8-bit 8-channel or 16-bit 4-channel
   Separate control for each pulse width and duty cycle
   Center-aligned or left-aligned outputs
   Programmable clock select logic with a wide range of frequencies
   Fast emergency shutdown input
   Usable as interrupt inputs
• Serial interfaces
   Two asynchronous Serial Communications Interfaces (SCI)
   Synchronous Serial Peripheral Interface (SPI)
• Byte Data Link Controller (BDLC)
   SAE J1850 Class B Data Communications Network Interface Compatible and ISO Compatible for
   Low-Speed (<125 Kbps) Serial Data Communications in Automotive Applications
• Inter-IC Bus (IIC)
   Compatible with I2C Bus standard
   Multi-master operation
   Software programmable for one of 256 different serial clock frequencies
• 112-Pin LQFP or 80 QFP package
   I/O lines with 5V input and drive capability
   5V A/D converter inputs
   Operation at 50MHz equivalent to 25MHz Bus Speed
   Development support
   Single-wire background debug™ mode (BDM)
   On-chip hardware breakpoints


Pinout

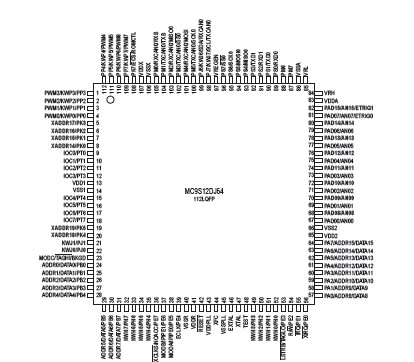

Connection Diagram


Specifications

Absolute maximum ratings are stress ratings only. A functional operation under or outside those maxima is not guaranteed. Stress beyond those limits may affect the reliability or cause permanent damage of the device.

This device contains circuitry protecting against damage due to high static voltage or electrical fields; however, it is advised that normal precautions be taken to avoid application of any voltages higher than maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage level (e.g., either VSS5 or VDD5).

Num Rating Symbol Min Max Unit
1 I/O, Regulator and Analog Supply Voltage VDD5 -0.3 6.0 V
2 Digital Logic Supply Voltage 2 VDD -0.3 3.0 V
3 PLL Supply Voltage 2 VDDPLL -0.3 3.0 V
4 Voltage difference VDDX to VDDR and VDDA DVDDX -0.3 0.3 V
5 Voltage difference VSSX to VSSR and VSSA DVSSX -0.3 0.3 V
6 Digital I/O Input Voltage VIN -0.3 6.0 V
7 Analog Reference VRH, VRL -0.3 6.0 V
8 XFC, EXTAL, XTAL inputs VILV -0.3 3.0 V
9 TEST input VTEST -0.3 10.0 V
10 Instantaneous Maximum Current
Single pin limit for all digital I/O pins 3		 ID -25 +25 mA
11 Instantaneous Maximum Current
Single pin limit for XFC, EXTAL, XTAL4		 IDL -25 +25 mA
12 Instantaneous Maximum Current
Single pin limit for TEST 5		 IDT -0.25 0 mA
13 Storage Temperature Range Tstg -65 155 °C
