MC92314

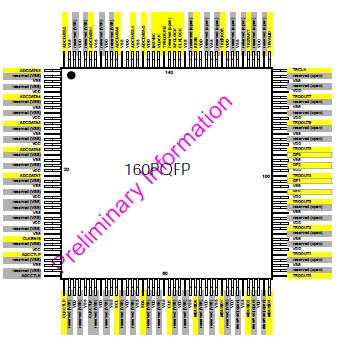

Motorola's DVB-T demodulator is available in a 160QFP package as well as in a 169BGA. The pinout of MC92314 as well as the input and output lines are given in Figure 2-1, Figure 2-2 and Table 2-1. The mechanical dimensions of the package are given in Section 7. The supply voltage of the IC is 3.3 V, its power consumption is app. 1.7 W in a typical DVB-T application as MC92314 is described Section 5.
