Position: Home  > All Categories> Integrated Circuits (ICs) > MC7805AECT

MC7805AECT

Linear Regulators - Standard 3-Terminal 1A Positive

product image

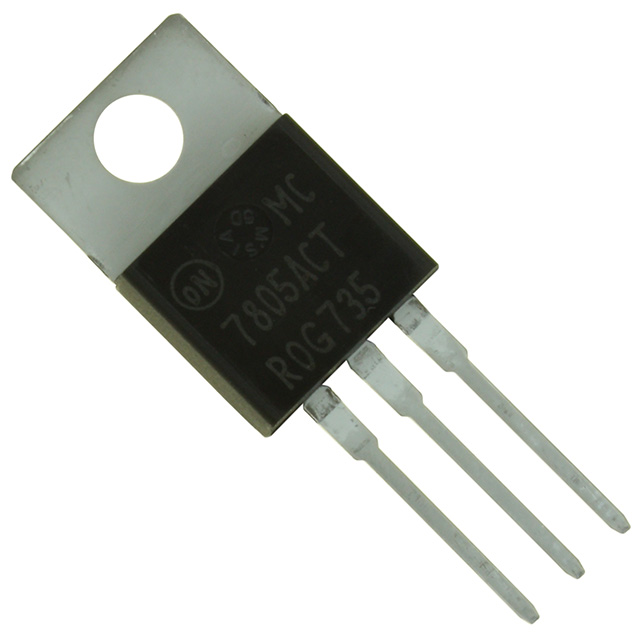

MC7805AECT Picture
See larger image
SeekIC No. : 00506071 Detail

MC7805AECT: Linear Regulators - Standard 3-Terminal 1A Positive

MC7805AECT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC7805AECT
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Type : Fixed Polarity : Positive
Output Voltage : 5 V Output Current : 1 A
Load Regulation : 100 mV Input Voltage MAX : 40 V
Line Regulation : 50 mV Maximum Operating Temperature : + 125 C
Mounting Style : Through Hole Package / Case : TO-220

Description

Output Type : Fixed
Polarity : Positive
Output Current : 1 A
Maximum Operating Temperature : + 125 C
Output Voltage : 5 V
Input Voltage MAX : 40 V
Mounting Style : Through Hole
Package / Case : TO-220
Load Regulation : 100 mV
Line Regulation : 50 mV


Parameters:

Technical/Catalog InformationMC7805AECT
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseTO-220
PackagingTube
Regulator TopologyPositive Fixed
Current - Output1A
Voltage - Output5V
Operating Temperature0°C ~ 125°C
Voltage - Input7.3 ~ 25 V
Number of Regulators1
Current - Limit (Min)2.2A
Current Short Circuit (Isc)230mA
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MC7805AECT
MC7805AECT
