Product Details

Description

Features:

• High Speed: t_PD = 7.7ns (Typ) at V_CC = 5V
• Low Power Dissipation: I_CC = 4A (Max) at T_A = 25°C
• TTLCompatible Inputs: V_IL = 0.8V; V_IH = 2.0V
• Power Down Protection Provided on Inputs and Outputs
• Balanced Propagation Delays
• Designed for 4.5V to 5.5V Operating Range
• Low Noise: V_OLP = 1.6V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 234 FETs or 58.5 Equivalent Gates

Pinout

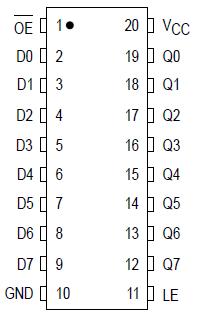

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	0.5 to +7.0	V
V_in	DC Input Voltage	0.5 to + 7.0	V
V_out	DC Output Voltage Outputs in 3-State High or Low State	0.5 to + 7.0 0.5 to V_CC + 0.5	V
I_IK	Input Diode Current	-20	mA
I_OK	Output Diode Current (V_OUT<GND;V_OUT>V_CC)	±20	mA
I_out	DC Output Current, per Pin	±25	mA
I_CC	DC Supply Current, V_CC and GND Pins	±75	mA
P_D	Power Dissipation in Still Air, SOIC Packages TSSOP Package	500 450	mW
T_stg	Storage Temperature	65 to +150	°C
