MC74VHCT132A

Features:

• High Speed: t_PD = 4.9ns (Typ) at V_CC = 5V
• Low Power Dissipation: I_CC = 2A (Max) at T_A = 25°C
• TTLCompatible Inputs: V_IL = 0.8V; V_IH = 2.0V
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Designed for 2V to 5.5V Operating Range
• Low Noise: V_OLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 72 FETs or 18 Equivalent Gates

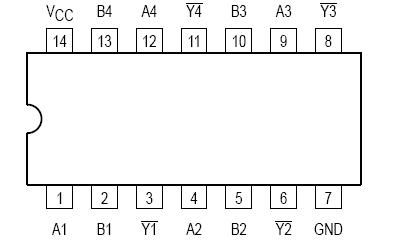

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	0.5 to + 7.0	v
Vin	DC Input Voltage	0.5 to + 7.0	V
Vout	DC Output Voltage	0.5 to VCC + 0.5	v
IIK	Input Diode Current	20	mA
IOK	Output Diode Current	± 20	mA
Iout	DC Output Current, per Pin	± 25	mA
ICC	DC Supply Current, VCC and GND Pins	± 50	mA
PD	SOIC PACKAGES                    TSSOP PACKAGES	400 900	mw
Tstg	storage  Temperatue	60 to + 150

Description

The MC74VHCT132A is an advanced high speed CMOS Schmitt NAND trigger fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

Pin configuration and function of MC74VHCT132A are the same as the MC74VHC00, but the inputs have hysteresis and, with its Schmitt trigger function, the VHCT132A
can be used as a line receiver which will receive slow input signals.

The VHCT inputs are compatible with TTL levels. MC74VHCT132A can be used as a level converter for interfacing 3.3V to 5.0V, because it has full 5V CMOS
level output swings.

The VHCT132A input structures provide protection when voltages between 0V and 5.5V are applied, regardless of the supply voltage. The output structures also provide protection when V_CC = 0V. These input and output structures help prevent MC74VHCT132A destruction caused by supply voltage input/output voltage mismatch, battery backup, hot insertion, etc.

The internal circuit is composed of three stages of MC74VHCT132A, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
