MC74VHCT04A

Features: • High Speed: tPD = 4.7ns (Typ) at VCC = 5V• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C• TTLCompatible Inputs: VIL = 0.8V; VIH = 2.0V• Power Down Protection Provided on Inputs and Outputs• Balanced Propagation Delays• Designed for 4.5V to 5.5V...

product image

MC74VHCT04A Picture
See larger image
SeekIC No. : 004417233 Detail

MC74VHCT04A: Features: • High Speed: tPD = 4.7ns (Typ) at VCC = 5V• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C• TTLCompatible Inputs: VIL = 0.8V; VIH = 2.0V• Power Down Protectio...

MC74VHCT04A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74VHCT04A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed: tPD = 4.7ns (Typ) at VCC = 5V
• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C
• TTLCompatible Inputs: VIL = 0.8V; VIH = 2.0V
• Power Down Protection Provided on Inputs and Outputs
• Balanced Propagation Delays
• Designed for 4.5V to 5.5V Operating Range
• Low Noise: VOLP = 1.0V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 48 FETs or 12 Equivalent Gates


Pinout

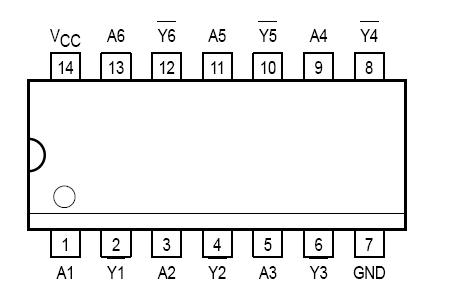

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
Vi DC Input Voltage (Referenced to GND) 0.5 to +7.0 V
Vout DC Output Voltage (Referenced to GND) 0.5 to +7.0 V
0.5 3 VO 3 VCC + 0.5
Iik DC Input Current, per Pin -20 mA
Iok DC Output Sink/Source Current, per Pin ±25 mA
lout DC Output Source/Sink Current ±50
ICC DC VCC or GND Current per Output Pin ±100 mA
pd DC Ground Current Per Ground Pin ±100
Tstg Storage Temperature 65 to +150 °C



Description

The MC74VHCT04A is an advanced high speed CMOS inverter fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. The VHCT inputs are compatible with TTL levels. MC74VHCT04A can be used as a level converter for interfacing 3.3V to 5.0V, because MC74VHCT04A has full 5V CMOS level output swings.

The VHCT04A input structures provide protection when voltages between 0V and 5.5V are applied, regardless of the supply voltage. The output structures also provide protection when VCC = 0V. These input and output structures of MC74VHCT04A help prevent MC74VHCT04A  destruction caused by supply voltage   input/output voltage mismatch, battery backup, hot insertion, etc.
