MC74VHCT00A

Features: • High Speed: tPD = 5.0ns (Typ) at VCC = 5V• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C• TTLCompatible Inputs: VIL = 0.8V; VIH = 2.0V• Power Down Protection Provided on Inputs and Outputs• Balanced Propagation Delays• Designed for 4.5V to 5.5V...

product image

MC74VHCT00A Picture
See larger image
SeekIC No. : 004417231 Detail

MC74VHCT00A: Features: • High Speed: tPD = 5.0ns (Typ) at VCC = 5V• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C• TTLCompatible Inputs: VIL = 0.8V; VIH = 2.0V• Power Down Protectio...

MC74VHCT00A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74VHCT00A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed: tPD = 5.0ns (Typ) at VCC = 5V
• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C
• TTLCompatible Inputs: VIL = 0.8V; VIH = 2.0V
• Power Down Protection Provided on Inputs and Outputs
• Balanced Propagation Delays
• Designed for 4.5V to 5.5V Operating Range
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 48 FETs or 12 Equivalent Gates

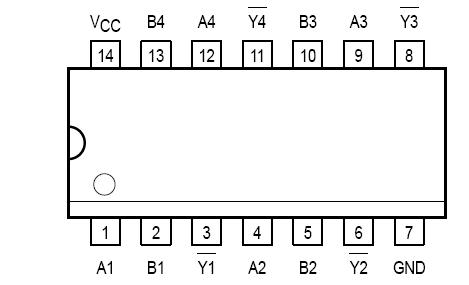

Pinout

Connection Diagram


Specifications

Characteristics Symbol Value Unit
DC Supply Voltage VCC 0.5 to +7.0 V
DC Input Voltage VIN 0.5 to +7.0 V
DC Output VoltageVCC = 0
High or Low State		 VOUT 0.5 to +7.0
0.5 to VCC + 0.5		 V
Input Diode Current IIK -20 mA
Output Diode Current (VOUT < GND; VOUT > VCC) IOK +20 mA
DC Output Current, per Pin IOUT +25 mA
DC Supply Current, VCC and GND ICC +50 mA
Power dissipation in still air SC88A?
TSOP5		 PD 500
400		 mW
Lead temperature, 1 mm from case for 10 s TL 260 °C
Storage temperature Tstg 65 to +150 °C



Description

The MC74VHCT00A is an advanced high speed CMOS 2input NAND gate fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

The VHCT inputs are compatible with TTL levels. MC74VHCT00A can be used as a level converter for interfacing 3.3V to 5.0V, because it has full 5V CMOS level output swings.

The VHCT00A input structures provide protection when voltages between 0V and 5.5V are applied, regardless of the supply voltage. The output structures also provide protection of MC74VHCT00A when VCC = 0V. These input and output structures help prevent MC74VHCT00A destruction caused by supply voltage input/output voltage mismatch, battery backup, hot insertion, etc.
