Product Details

Description

Pinout

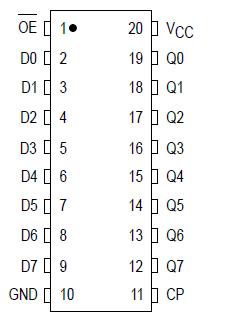

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	0.5 to + 7.0	V
V_in	DC Input Voltage	0.5 to + 7.0	V
V_OUT	DC Output Voltage	0.5 to V_CC + 0.5	V
I_IK	Input Diode Current	-20	mA
I_OK	Output Diode Current	±20	mA
I_OUT	DC Output Current, per Pin	±25	mA
I_CC	DC Supply Current, V_CC and GND Pins	±75	mA
P_D	Power Dissipation in Still Air, SOIC Packagest TSSOP Packaget	500 450	mW
T_stg	storage Temperature	-65 to +150
