Product Details

Description

Features:

• Fast Switching and Propagation Speeds
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Analog Power Supply Range (V_CC − V_EE) = 2.0 to 12.0 V
• Digital (Control) Power Supply Range (V_CC − GND) = 2.0 to 6.0 V
• Improved Linearity and Lower ON Resistance Than Metal−Gate Counterparts
• Low Noise
• Chip Complexity: VHC4051 - 184 FETs or 46 Equivalent Gates
VHC4052 - 168 FETs or 42 Equivalent Gates
VHC4053 - 156 FETs or 39 Equivalent Gates

Pinout

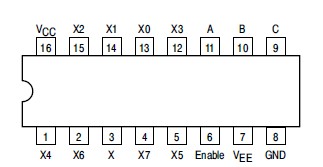

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Positive DC Supply Voltage (Referenced to GND) (Referenced to GEE)	−0.5 to +7.0	V
V_EE	Negative DC Supply Volitage (Referenced to GND)	-7.0 to +5.0	V
V_IS	Analog Input Voltage	V_EE-0.5 to V_CC+5.0	V
V_in	Digtal Input Voltage (Referenced to GND)	−0.5 to V_CC+7.0	V
I	DC Current Into or Out of Any Pin	±25	mA
P_D	Power DIssipation in Still Air SOIC Packaget TSSOP Packget	500 400	mW
T_stg	Storage Temperature Range	-65 to +150
T_L	Lead Temperature,1mm from Case for 10 Seconds	260

Description

The MC74VHC4051, MC74VHC4052 and MC74VHC4053 utilize silicon−gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. These analog multiplexers/demultiplexers control analog voltages that may vary across the complete power supply range (from V_CC to V_EE).

The VHC4051, VHC4052 and VHC4053 are identical in pinout to the high−speed HC4051A, HC4052A and HC4053A, and the metal−gate MC14051B, MC14052B and MC14053B. The Channel−Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off.

The Channel−Select and Enable inputs are compatible with standard CMOS outputs; with pullup resistors they are compatible with LSTTL outputs.

MC74VHC4053 have been designed so that the ON resistance (Ron) is more linear over input voltage than R_on of metal−gate CMOS analog switches.
