Features: • High Speed: tPD = TBD (Typ) at VCC = 5 V• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C• Diode Protection Provided on Inputs and Outputs• Improved Linearity and Lower ON Resistance over Input Voltagethan the MC14066 or the HC4066• Pin and Function C...
MC74VHC1G66: Features: • High Speed: tPD = TBD (Typ) at VCC = 5 V• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C• Diode Protection Provided on Inputs and Outputs• Improved Linearit...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Characteristics | Symbol | Value | Unit |
DC Supply Voltage | VCC | 0.5 to +7.0 | V |
DC Input Voltage | VIN | 0.5 tovcc +0.5 | V |
DC Output Voltage | Vis | 0.5 to VCC + 0.5 |
V |
Input Diode Current | IIK | ±20 | mA |
DC Supply Current, VCC and GND | ICC | ±25 | mA |
Power dissipation in still air SC88A? TSOP5? |
PD | 200 |
mW |
Lead temperature, 1 mm from case for 10 s | TL | 260 | °C |
Storage temperature | Tstg | 65 to +150 | °C |

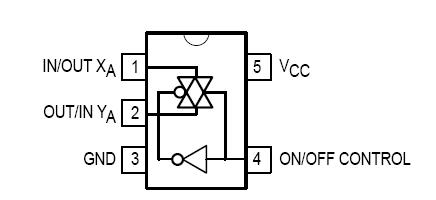

The MC74VHC1G66 is an advanced high speed CMOS bilateral analog switch fabricated with silicon gate CMOS technology. MC74VHC1G66 achieves high speed propagation delays and low ON resistances while maintaining CMOS low power dissipation. This bilateral switch controls analog and digital voltages that may vary across the full powersupply range (from VCC to GND).
The MC74VHC1G66 is compatible in function to a single gate of the High Speed CMOS MC74VHC4066 and the metalgate CMOS MC14066. v has been designed so that the ON resistances (RON) are much lower and more linear over input voltage than RON of the metalgate CMOS or High Speed CMOS analog switches.
The ON/OFF control inputs are compatible with standard CMOS outputs; with pullup resistors, MC74VHC1G66 is compatible with LSTTL outputs.
