MC74VHC1G53

Features: • High Speed: tPD = 4 ns (Typ) at VCC = 5 V• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C• Diode Protection Provided on Inputs and Outputs• Improved Linearity and Lower ON Resistance over Input Voltage than the MC14053B or the HC4053• Pin and Functio...

product image

MC74VHC1G53 Picture
See larger image
SeekIC No. : 004417194 Detail

MC74VHC1G53: Features: • High Speed: tPD = 4 ns (Typ) at VCC = 5 V• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C• Diode Protection Provided on Inputs and Outputs• Improved Lineari...

MC74VHC1G53 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74VHC1G53
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed: tPD = 4 ns (Typ) at VCC = 5 V
• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C
• Diode Protection Provided on Inputs and Outputs
• Improved Linearity and Lower ON Resistance over Input Voltage
  than the MC14053B or the HC4053
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300 mA
• ESD Performance: HBM > 2000 V; MM > 200 V, CDM > 1500 V


Pinout

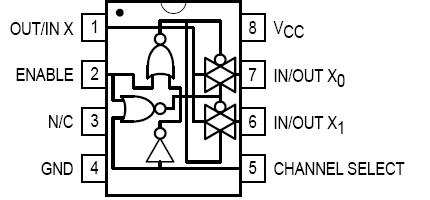

Connection Diagram


Specifications

Characteristics Symbol Value Unit
DC Supply Voltage VCC 0.5 to +7.0 V
DC Input Voltage VIN 0.5 tovcc +0.5 V
DC Output Voltage Vis
0.5 to VCC + 0.5		 V
Input Diode Current IIK ±20 mA
DC Supply Current, VCC and GND ICC ±25 mA
Power dissipation in still air SC88A?
TSOP5?		 PD 300
 mW
Lead temperature, 1 mm from case for 10 s TL 260 °C
Storage temperature Tstg 65 to +150 °C



Description

The MC74VHC1G53 is an advanced high speed CMOS multiplexer demultiplexer analog switch fabricated with silicon gate CMOS technology. MC74VHC1G53 achieves high speed propagation delays and low ON resistances while maintaining CMOS low power dissipation. This multiplexer demultiplexer controls analog and digital voltages that may vary across the full powersupply range (from VCC to GND).

The MC74VHC1G53 is compatible in function to a single gate of the High Speed CMOS MC74VHC4053 and the metalgate CMOS MC14053. The device has been designed so that the ON resistances (RON) are much lower and more linear over input voltage than RON of the metalgate CMOS analog switches.

The ON/OFF control inputs are compatible with standard CMOS outputs; with pullup resistors,MC74VHC1G53 is compatible with LSTTL outputs.
