MC74VHC1G09DFT1 Selling Leads, Price trend, MC74VHC1G09DFT1 DataSheet download, circuit diagram from SeekIC.com

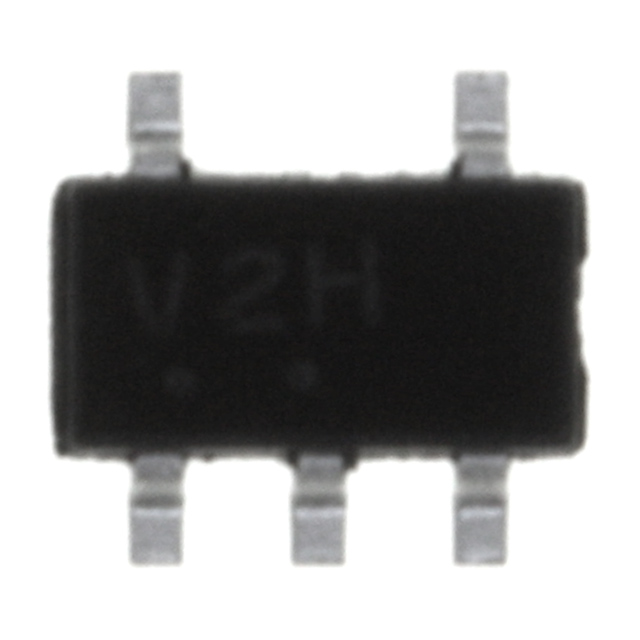

See larger image

SeekIC No. : 003545198 Detail

MC74VHC1G09DFT1: IC GATE AND SGL 2INP OD SOT-353

MC74VHC1G09DFT1 Data Sheet

Get Latest Price

Part Number:: MC74VHC1G09DFT1
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC74 evaluate
Features: • Tested Operating Temperature Range: 40 to +125 • Simple Serial Port Interf...
MC740-430E evaluate
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
MC7410TVU400LE evaluate
US $92.17 - 92.17 / Piece

Microprocessors (MPU) REV 1.4,-40C PB FREE SPH

Product Details

Quick Details

Series:	74VHC	Manufacturer:	ON Semiconductor
Logic Type:	AND Gate	Number of Circuits:	1
Number of Inputs:	2	Features:	Open Drain
High Level Output Current :	- 32 mA	Voltage - Supply:	2 V ~ 5.5 V
Current - Quiescent (Max):	1µA	Current - Output High, Low:	-, 8mA
Logic Level - Low:	0.5 V ~ 1.65 V	Logic Level - High:	1.5 V ~ 3.85 V
Max Propagation Delay @ V, Max CL:	7.9ns @ 4.5V ~ 5.5V, 50pF	Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount	Supplier Device Package:	SC-70
Package / Case:	6-TSSOP (5 Lead), SC-88A, SOT-353

Description

Number of Circuits: 1
Mounting Type: Surface Mount
Package / Case: 6-TSSOP (5 Lead), SC-88A, SOT-353
Number of Inputs: 2
Voltage - Supply: 2 V ~ 5.5 V
Current - Quiescent (Max): 1µA
Logic Level - Low: 0.5 V ~ 1.65 V
Logic Level - High: 1.5 V ~ 3.85 V
Logic Type: AND Gate
Max Propagation Delay @ V, Max CL: 7.9ns @ 4.5V ~ 5.5V, 50pF
Features: Open Drain
Operating Temperature: -55°C ~ 125°C
Current - Output High, Low: -, 8mA
Packaging: Tape & Reel (TR)
Series: 74VHC
Manufacturer: ON Semiconductor
Supplier Device Package: SC-70

Parameters:

Technical/Catalog Information	MC74VHC1G09DFT1
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	SC-70-5, SC-88A, SOT-323-5, SOT-353, 5-TSSOP
Logic Type	AND Gate
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	8mA, 8mA
Supply Voltage	2 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	2 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74VHC1G09DFT1 MC74VHC1G09DFT1
