MC74VHC138

The MC74VHC138 is an advanced high speed CMOS 3to8 decoder fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

When MC74VHC138 is enabled, three Binary Select inputs (A0 A2) determine which one of the outputs (Y0 Y7) will go Low. When enable input E3 is held Low or either E2 or E1 is held High, decoding function is inhibited and all outputs go high. E3, E2, and E1 inputs are provided to ease cascade connection and for use as an address decoder for memory systems.

The internal circuit of MC74VHC138 is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.

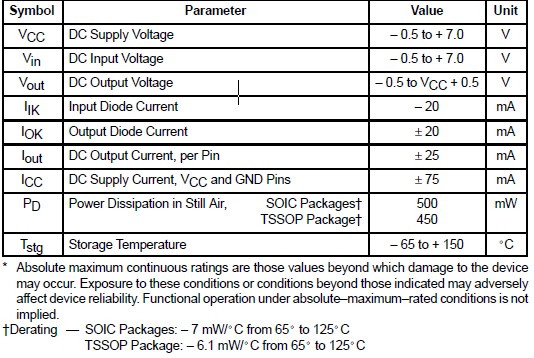

• High Speed: t_PD = 5.7ns (Typ) at V_CC = 5V
• Low Power Dissipation: I_CC = 4A (Max) at T_A = 25°C
• High Noise Immunity: V_NIH = V_NIL = 28% V_CC
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Designed for 2V to 5.5V Operating Range
• Low Noise: V_OLP = 0.8 V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 122 FETs or 30.5 Equivalent Gates
