Product Details

Description

Pinout

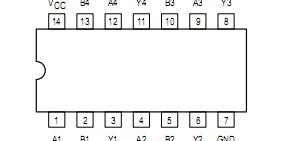

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
DC Supply Voltage	V_CC	0.5 to +7.0	V
DC Input Voltage	V_in	0.5 to +7.0	V
DC Output Voltage	V_out	0.5 to V_CC + 0.5	V
Input Diode Current	I_IK	-20	mA
Output Diode Current	I_OK	+20	mA
DC Output Current, per Pin	I_out	±25	mA
DC Supply Current, VCC and GND Pins	I_CC	±50	mA
Power Dissipation in Still Air, SOIC Packages† TSSOP Package†	P_D	500 450	mW
Storage Temperature	T_stg	65 to +150

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
†Derating - SOIC Packages: 7 mW/ from 65 to 125
TSSOP Package: 6.1 mW/ from 65to 125
