Product Details

Description

Pinout

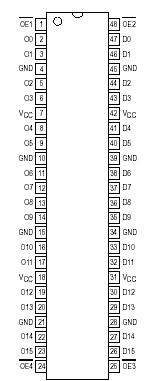

Connection Diagram

Specifications

Symbol	Parameter	Value	Condition	Unit
V_CC	DC Supply Voltage	0.5 to +4.6		V
V_I	DC Input Voltage	0.5 3 VI 3 +4.6		V
V_O	DC Output Voltage	0.5 3 VO 3 +4.6	Output in 3State	V
V_O	DC Output Voltage	0.5 3 VO 3 V_CC + 0.5	Note 1.; Outputs Active	V
I_IK	DC Input Diode Current	50	VI < GND	mA
I_OK	DC Output Diode Current	50	VO < GND	mA
I_OK	DC Output Diode Current	+50	VO > V_CC	mA
I_O	DC Output Source/Sink Current	+50		mA
I_CC	DC Supply Current Per Supply Pin	±100		mA
I_GND	DC Ground Current Per Ground Pin	±100		mA
T_STG	Storage Temperature Range	65 to +150

1. IO absolute maximum rating must be observed.
