Product Details

Description



Pinout

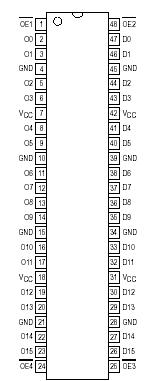

Connection Diagram


Specifications

Symbol
Parameter
Value
Condition
Unit
VCC
DC Supply Voltage
0.5 to +4.6
V
VI
DC Input Voltage
0.5 3 VI 3 +4.6
V
VO
DC Output Voltage
0.5 3 VO 3 +4.6
Output in 3State
V
0.5 3 VO 3 VCC + 0.5
Note 1.; Outputs Active
V
IIK
DC Input Diode Current
50
VI < GND
mA
IOK
DC Output Diode Current
50
VO < GND
mA
+50
VO > VCC
mA
IO
DC Output Source/Sink Current
+50
mA
ICC
DC Supply Current Per Supply Pin
±100
mA
IGND
DC Ground Current Per Ground Pin
±100
mA
TSTG
Storage Temperature Range
65 to +150
1. IO absolute maximum rating must be observed.
