MC74VCX16240

Features: • Designed for Low Voltage Operation: VCC = 1.653.6V• 3.6V Tolerant Inputs and Outputs• High Speed Operation: 2.5ns max for 3.0 to 3.6V 3.0ns max for 2.3 to 2.7V 6.0ns max for 1.65 to 1.95V• Static Drive: ±24mA Drive at 3.0V ±18mA Drive at 2.3V ±6mA Drive at 1.65V...

product image

MC74VCX16240 Picture
See larger image
SeekIC No. : 004417159 Detail

MC74VCX16240: Features: • Designed for Low Voltage Operation: VCC = 1.653.6V• 3.6V Tolerant Inputs and Outputs• High Speed Operation: 2.5ns max for 3.0 to 3.6V 3.0ns max for 2.3 to 2.7V 6.0ns ma...

MC74VCX16240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74VCX16240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed for Low Voltage Operation: VCC = 1.653.6V
• 3.6V Tolerant Inputs and Outputs
• High Speed Operation: 2.5ns max for 3.0 to 3.6V
  3.0ns max for 2.3 to 2.7V
  6.0ns max for 1.65 to 1.95V
• Static Drive: ±24mA Drive at 3.0V
  ±18mA Drive at 2.3V
  ±6mA Drive at 1.65V
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0V
• Near Zero Static Supply Current in All Three Logic States (20mA)
  Substantially Reduces System Power Requirements
• Latchup Performance Exceeds ±300mA @ 125°C
• ESD Performance: Human Body Model >2000V; Machine Model


Pinout

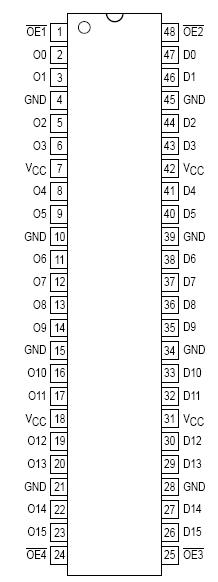

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0   V
Vi DC Input Voltage (Referenced to GND) 0.5 3 VI 3 +4.6   V
Vo DC Output Voltage (Referenced to GND) 0.5 3 VO 3 +4.6 Output in 3State V
0.5 3 VO 3 VCC + 0.5 Note 1.; Outputs Active
Iik DC Input Current, per Pin -50 VI < GND mA
Iok DC Output Sink/Source Current, per Pin -50 VO < GND mA
+50 VO > VCC
lo DC Output Source/Sink Current ±50
ICC DC VCC or GND Current per Output Pin ±100   mA
IGND DC Ground Current Per Ground Pin ±100
Tstg Storage Temperature 65 to +150   °C
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions
beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. IO absolute maximum rating must be observed.


Description

The MC74VCX16240 is an advanced performance, inverting 16bit buffer. It is designed for very highspeed, very lowpower operation in 1.65V, 2.5V or 3.3V systems.

When operating at 2.5V (or 1.65V) the part is designed to tolerate voltages MC74VCX16240 may encounter on either inputs or outputs when interfacing to 3.3V busses. MC74VCX16240 is guaranteed to be overvoltage tolerant to 3.6V. The MC74VCX16240 is nibble controlled with each nibble functioning identically, but independently. The control pins may be tied together to obtain full 16bit operation. The 3state outputs are controlled by an Output Enable (OEn) input for each nibble. When OEn is LOW, the outputs are on. When OEn is HIGH, the outputs are in the high impedance state.
