Features:

• Designed for Low Voltage Operation: VCC = 1.653.6V
• 3.6V Tolerant Inputs and Outputs
• High Speed Operation: 3.3ns max for 3.0 to 3.6V
  3.8ns max for 2.3 to 2.7V
  7.6ns max for 1.65 to 1.95V
• Static Drive: ±12mA Drive at 3.0V
  ±8mA Drive at 2.3V
  ±3mA Drive at 1.65V
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0V
• Near Zero Static Supply Current in All Three Logic States (20mA)
  Substantially Reduces System Power Requirements
• Latchup Performance Exceeds ±300mA @ 125°C
• ESD Performance: Human Body Model >2000V; Machine Model >200

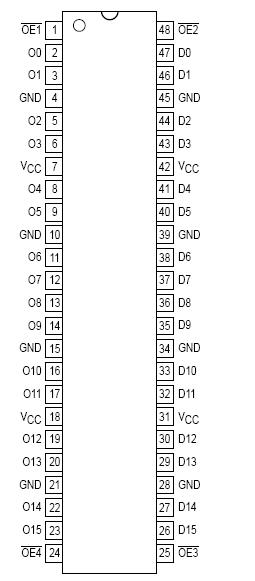

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0   V
Vi DC Input Voltage (Referenced to GND) 0.5 3 VI 3 +7.0   V
Vo DC Output Voltage (Referenced to GND) 0.5 3 VO 3 VCC + 0.5 Note 1. V
Iik DC Input Current, per Pin -50 VI < GND mA
Iok DC Output Sink/Source Current, per Pin -50 VO < GND mA
+50 VO > VCC
lo DC Output Source/Sink Current ±50
ICC DC VCC or GND Current per Output Pin ±100   mA
IGND DC Ground Current Per Ground Pin ±100
Tstg Storage Temperature 65 to +150   °C
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions
beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. IO absolute maximum rating must be observed


Description

The MC74VCX162240 is an advanced performance, inverting 16bit buffer. It is designed for very highspeed, very lowpower operation in 1.65V, 2.5V or 3.3V systems.

When operating at 2.5V (or 1.65V) the part is designed to tolerate voltages MC74VCX162240 may encounter on either inputs or outputs when interfacing to 3.3V busses. It is guaranteed to be overvoltage tolerant to 3.6V.

The MC74VCX162240 is nibble controlled with each nibble functioning identically, but independently. MC74VCX162240 is designed with 26W series resistors in each of the outputs to reduce noise. The control pins may be tied together to obtain full 16bit operation. The 3state outputs are controlled by an Output Enable (OEn) input for each nibble. When OEn is LOW, the outputs are on. When OEn is HIGH, the outputs are in the high impedance state.
