MC74LVXC3245

Features: • Bidirectional Interface Between 3V and 3V/5V Buses• Control Inputs Compatible with TTL Level• Outputs Source/Sink Up to 24mA• Guaranteed Simultaneous Switching Noise Level and Dynamic Threshold Performance• Available in SOIC and TSSOP Packages• Flexi...

product image

MC74LVXC3245 Picture
See larger image
SeekIC No. : 004417148 Detail

MC74LVXC3245: Features: • Bidirectional Interface Between 3V and 3V/5V Buses• Control Inputs Compatible with TTL Level• Outputs Source/Sink Up to 24mA• Guaranteed Simultaneous Switching No...

MC74LVXC3245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LVXC3245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bidirectional Interface Between 3V and 3V/5V Buses
• Control Inputs Compatible with TTL Level
• Outputs Source/Sink Up to 24mA
• Guaranteed Simultaneous Switching Noise Level and Dynamic Threshold Performance
• Available in SOIC and TSSOP Packages
• Flexible VCCB Operating Range
• Allows B Port and VCCB to Float Simultaneously When OE Is High
• Functionally Compatible with the 74 Series 245


Pinout

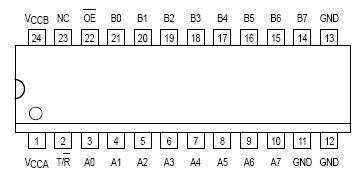

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCCA, VCCB DC Supply Voltage 0.5 to +7.0   V
VI DC Input Voltage OE, T/R 0.5 to VCCA +0.5   V
VI/O DC Input/Output Voltage An
Bn		 0.5 to VCCA +0.5   V
0.5 to VCCB +0.5         V
IIK DC Input Diode Current OE, T/R ±20 VI < GND mA
IOK DC Output Diode Current ±50 VO < GND; VO > VCC mA
IO DC Output Source/Sink Current ±50   mA
ICC, IGND DC Supply Current Per Output Pin
Maximum Current 		±50
±200
   mA
TSTG Storage Temperature Range 65 to +150   °C
DC Latchup Source/Sink Current ±300   mA



Description

The 74LVXC3245 is a 24pin dualsupply, octal configurable voltage interface transceiver especially well suited for PCMCIA and other real time configurable I/O applications. The VCCA pin accepts a 3V supply level; the A port is a dedicated 3V port. The VCCB pin accepts a 3Vto5V supply level. The B port is configured to track the VCCB supply level. A 5V level on the VCCB pin will configure the I/O pins at a 5V level and a 3V VCCB will configure the I/O pins at a 3V level. The A port interfaces with a 3V host system and the B port to the card slots. This device will allow the VCCB voltage source pin and I/O pins on the B port to float when OE is High. This feature of MC74LVXC3245 is necessary to buffer data to and from a PCMCIA socket that permits PCMCIA cards to be inserted and removed during normal operation. The Transmit/Receive (T/R) input determines the direction of data flow. Transmit (activeHigh) enables data of MC74LVXC3245 from the A port to B port. Receive (activeLow) enables data from the B port to the A port.
