MC74LVX4245

Features: • Bidirectional Interface Between 5V and 3V Buses• Control Inputs Compatible with TTL Level• 5V Data Flow at A Port and 3V Data Flow at B Port• Outputs Source/Sink 24mA at 5V Bus and 12mA at 3V Bus• Guaranteed Simultaneous Switching Noise Level and Dynamic T...

product image

MC74LVX4245 Picture
See larger image
SeekIC No. : 004417139 Detail

MC74LVX4245: Features: • Bidirectional Interface Between 5V and 3V Buses• Control Inputs Compatible with TTL Level• 5V Data Flow at A Port and 3V Data Flow at B Port• Outputs Source/Sink ...

MC74LVX4245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LVX4245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bidirectional Interface Between 5V and 3V Buses
• Control Inputs Compatible with TTL Level
• 5V Data Flow at A Port and 3V Data Flow at B Port
• Outputs Source/Sink 24mA at 5V Bus and 12mA at 3V Bus
• Guaranteed Simultaneous Switching Noise Level and Dynamic Threshold Performance
• Available in SOIC and TSSOP Packages
• Functionally Compatible with the 74 Series 245


Pinout

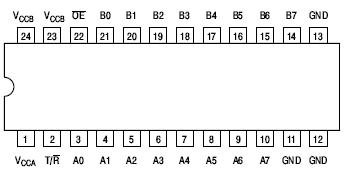

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCCA, VCCB DC Supply Voltage 0.5 to +7.0   V
VI DC Input Voltage OE, T/R 0.5 to VCCA +0.5   V
VI/O DC Input/Output Voltage An
Bn		 0.5 to VCCA +0.5   V
0.5 to VCCB +0.5         V
IIK DC Input Diode Current OE, T/R ±20 VI < GND mA
IOK DC Output Diode Current ±20 VO < GND; VO > VCC mA
IO DC Output Source/Sink Current ±20   mA
ICC, IGND DC Supply Current Per Output Pin
Maximum Current at ICCA
Maximum Current at ICCB		 ±20
±20
±20		   mA
TSTG Storage Temperature Range 65 to +150   °C
Latchup DC Latchup Source/Sink Current ±300   mA



Description

The 74LVX4245 is a 24pin dualsupply, octal translating transceiver MC74LVX4245 is  designed to interface between a 5V bus and a 3V bus in a mixed 3V/5V supply environment such as laptop computers using a 3.3V CPU and 5V LCD display. The A port interfaces with the 5V bus; the B port interfaces with the 3V bus.

The Transmit/Receive (T/R) input MC74LVX4245 determines the direction of data flow. Transmit (activeHigh) enables data from the A port to the B port. Receive (activeLow) enables data from the B port to the A port. The Output Enable (OE) input, when High, disables both A and B ports by placing them in 3State.
