Product Details

Description



Features:

• Fast Switching and Propagation Speeds
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Analog Power Supply Range (VCC GND) = 2.0 to 6.0 V
• Digital (Control) Power Supply Range (VCC GND) = 2.0 to 6.0 V
• Improved Linearity and Lower ON Resistance Than MetalGate Counterparts
• Low Nois


Pinout

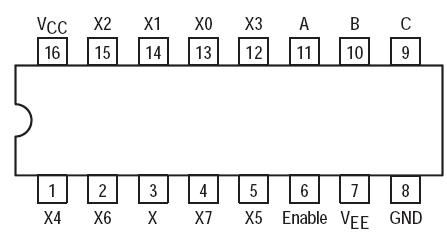

Connection Diagram


Specifications

Symbol Parameter Value Unit
vcc DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
VOUT DC Output Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
LIN DC Input Current, per Pin ±20 mA
IOUT DC Onput Current, per Pin ±25 mA
ICC DC Supply Current Per Supply Pin ±50 mA
PD Power dissipation in still air piastic DIP
SOIC package
500
450		 mW
TSTG Storage Temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
*Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - SOIC Package: 7 mW/ from 65 to 125
TSSOP Package: 6.1 mW/ from 65to 125


Description

The MC74LVX4051 utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range (from VCC to VEE).

The LVX4051 is similar in pinout to the LVX8051, HC4051A and the metalgate MC14051B. The ChannelSelect inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off.

The ChannelSelect and Enable inputs of MC74LVX4051 are compatible with standard CMOS outputs; with pullup resistors they are compatible with LSTTL outputs.

MC74LVX4051 has been designed so that the ON resistance (Ron) is more linear over input voltage than Ron of metalgate CMOS analog switches.
